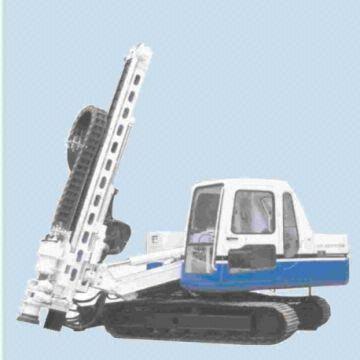

TL-100 Surface Drilling Rig - TL-100

Performance of the integrated equipment
Drilling diameter:100-165mm
Drilling Depth:30m
Propelling stroke:3200mm
propelling speed:0.45m/s
compensation stroke:1000mm
speed:38r/min
rotation torque:1170N.m
reversing torque:1850N.m
High gear:1.9Km/h
Slow gear:0.6Km/h
engine power:58KW
Dimensions:4800*2335*2680
overall weight:8800KG
compressor pressure>=1.25Pa

Main configuration
Chassis:Pending China made
Engine:YUCHAI GuangXi China made
Valves:BeiJing HuaDe China made

Main Features
TL-100 outdoor rig is used in mine,which tongguan company designed according to open-pit mine mining technological characteristics in china.The hydraclic integration technology and PLC program control technology combined,make the rig function module clear,advanced and reliable performance,man-machine relationship harmony ,excellent operating environment,is a good choice to use in mines.
1 ,Have the perfect displacement ,positioning institutions drill frame and meet the requirements of the slope direction hole
2,Crawler chassis walking system provides more powerful traction force and climbing ability that applies to muddy road surface.
3,Bulldozer blade at the front can be used to flatten working ground and rotation platform can spin in 360degrees which makes operation more flexible.
4,Advanced hydraulic integration technology greatly simplified oil hose structure and improved reliability of hydraulic system.
5,Advanced rod loading/unloading device and automatic sticking prevention system make sure the drilling machine works highly effectively.
6,Advanced PLC control system effectively enabled inteligent functions.
7,The machine could be controlled on platform which can move away from working place.
8,Paramenter can be conveniently stepless-controlled based on actual conditions ability of main working mechanism such as rotation and propelling,etc.
