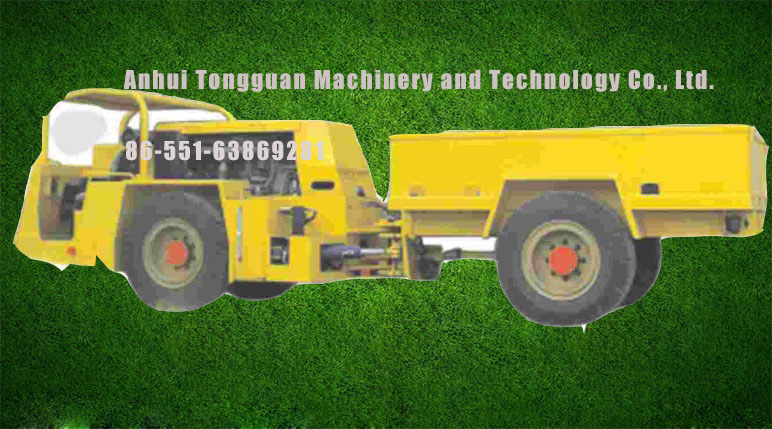

Underground Service Vehicles-Material Carrier - JY-5CL

General Specifications
Style:JY-5CL
All Dumension:length/width/height6620*1800*2000(mm)
tank size:length/width/height2800*1800*500(mm)
Empty weight:6760KG
Rate load:5000KG
Turning Radius:Inner3800(mm)Outer5900(mm)
Also can be called underground truck used to carry ordinary material.Have fixed and changeable two styles.



Main Features
1,Applied two-stage combustion with lower pollution.Equipped with air cooling system,meatal catalytic purifier and muffler.Discharger exhaust contains extremely low amount of harmful substance which is far below the requirements of "GB 14761.5/6/7".
2,Working brakes are separately mounted on both of the two drive axles.Braking system applied individually double-piped hydraulic controlling.
3,Since the main power system,transmission components and hydraulic components are from famous brand holding foreign manfacturers ,and the other components are also hhigh--quality products from our finest domstic manufacturers,our machine is greatly excellent and reliable in performance.

Main configuration
Diesel engine:Germany DEUTZ F6L912W
Torque converter and shift transmission :US DANA 1201FT20321
Axle:US DANA F112
Twin gear pump:Italy sailami 2.5PB
Valves:US Mico

Working condition: The mchine is suitablle for un-coal mine.
Empty weight:6t
Rate load:5t
standard Bucket Capacity:3m2
maximum dumping height:1600mm
minimum unload distance:1480mm
Distance between wheels:1530+-40mm
Steering Angel:+-10degree
RotationAngel:+-40degree
Grade ability:25%
Turning radius:Inner 3800mm/Outer 5900mm
Speed Gear1:4.8km/kh Gear2:10.0km/h Gear3:22.0km/h
