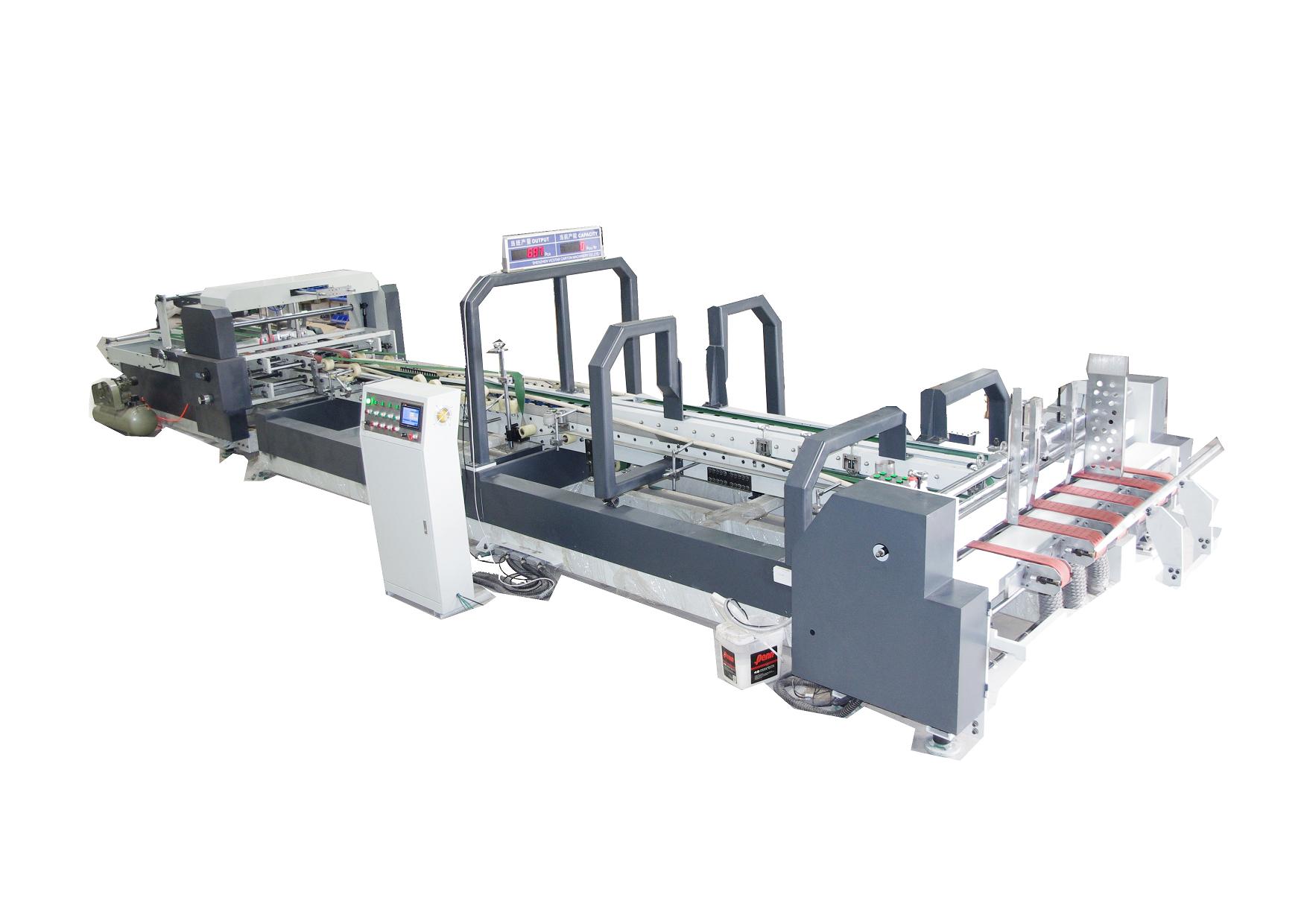

VFGA Automatic Folder Gluer - VFGA-2000/2600 Specificaton & Trade Terms
| Model | VFGA-2000/2600 |
|---|
| Place Of Origin | China |
|---|
| Packaging | wooden cases with plastic film |
|---|
| Brand | VICSTAR |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 2 set/month |
|---|
| Minimum Order | 1 |
|---|
| Loading Ports | shenzhen |
|---|
| Delivery Time | within 30days after receiving the dowm payment |
|---|
1. Operation System
Adopt PLC programming control. Operate through touch screen.
Data input without stopping the machine，which is easy to operate.
Adopt frequency conversion to adjust speed, ensuring energy conservation and environmental protection
Feeding, gluing and folding, stacking, counting and outputting work with linkage, and all parts are in coordinated automatic operation.
Adopt different kinds of recifying devices, such as creasing wheels, crimping roller, speed differential adjustment, and flapping device, etc., which completely avoids the forfex error.
Adopt digital screen to show instant capacity. Remote monitoring interface is reserved, which can connect with the network production management system (DCS).
Linkage interface is reserved for Automatic Stitching Machine.
Linkage interface is reserved for Automatic Strapping Machine.
It is equipped with automatic emergency stop system, ensuring the normal production.
2. Feeding Part
Adopt automatic lead edge paperboard feeding.
Adopt electromagnetic clutch and brake system for the independent control of the Feeding Part.
Front baffle and conveyor belt can be left-right adjusted.
3. Gluing and Folding Part
Adopt full automatic glue supplying system. If it is lack of glue, the machine will alarm,
Frequency conversion to adjust speed, 0-139m/min adjustable.
Adopt linear bearing, which ensures precise adjustment, stable and reliable running.
4. Output Part
Adopt stepless differential speed device to minimize forfex error.
Adopt flapping and rectifying device to completely avoids the forfex error.
Automatic counting, piling and output.
NO./ pile: 10,15,20,or 25 pcs
Adopt Output delay device to prolong pressing time and to ensure adhesion effect.
Model VFGA-2000 VFGA-2600
Max. Paper Size (mm) 1200×2000 1200×2600
Min. Paper Size (mm) 300×700 300×900
Speed (m/min) 0~139 0~139
Pile Quantity (pcs) 10,15,20,25 10,15,20,25
Applicable Paperboard (Ply)3 & 5 3 & 5
Total Power (kw) 10 12
Installation Area (mm) 2600×11000 3200×12000
Weight (kg) 5500 6500
