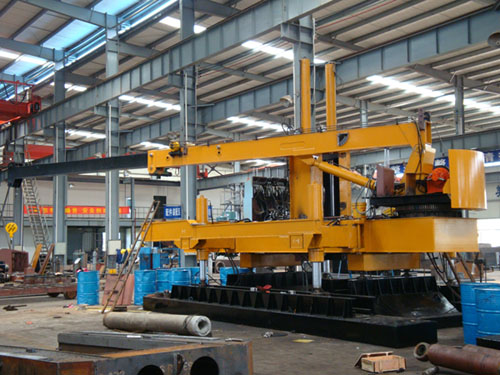

ZYC series hydraulic static pile driver - ZYC180B-B Specificaton & Trade Terms
| Model | ZYC180B-B |
|---|
| Place Of Origin | CHINA |
|---|
| Packaging | host machine in nude and accessorial parts in iron cases |
|---|
| Brand | NTH |
|---|
| Certifications | CE,ISO9001 |
|---|
| Price Term | EX-Work,FOB,CIF |
|---|
| Payment Term | T/T,L/C,Western Union |
|---|
| Supply Ability | 300pcs/year |
|---|
| Minimum Order | 1pc |
|---|
| Loading Ports | any port of china |
|---|
| Delivery Time | 40days |
|---|
Main product: ZYC series multi-functional Hydraulic Static Pile Driver is Self-developed with 5 up-to-date patents.
The working principle is using hydraulic pressure to clamp precasted pile, H shape or other shape
steel pile, and then driving the pile into ground by hydraulic pressing.Suitable for piling precast round & square concrete pile, H shape steel pile and other irregular-
shaped pile in clay, soft soil and sandy ground.It has characteristics of no noise, no vibration, no pollution, clear ground with high speed of pile
driving, reliable construction quality and environmental protection, high efficiency, energy saving.
It is welcomed by the customers with wide market prospect.
Features for ZYC180B-B: Rated piling pressure(tf):180
suitable pile:300-400
Max. Piling speed:7.8
Piling stroke:1.6
Max. Longitudinal pace:2.4
Max. Transverse pace:0.5
Max. Rise stroke:1.0
Max.rotation angle per time:15
Rated hydraulic system pressure:22.4(16)
Hydraulic Pump:2*63 + 1*63
Motor power:2*22 + 1*22
Max. Crane lifting weight:8t
Hanging pile length:12m
Minimum side piling space:560mm
Minimum corner piling space:1210mm
Intensity of pressure:8.18/12.0
Total weight≥:180t
After-sales Service and Warranty for Hydraulic static pile driver:
Sellers will assign qualified technician to instruct the buyers for installation and trial operation of the equipment. And also will train the buyers operators.
Warranty time:
12 month from the date of the pile driver leaving factory.
