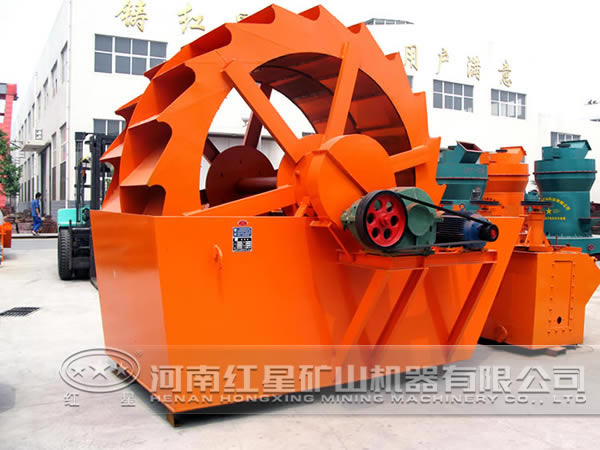

artificial sand washer - XS2900 sand washer

Sea sand washer with top high efficiency on sale

FOB Price:US $6,000 - 18,940 / Set

Port:Qingdao,Tianjin,Shanghai or others

Minimum Order Quantity:1 Set

Supply Ability:1500 Sets per year

Payment Terms:L/C, D/A, D/P, T/T, Western Union

Quick Details

Condition:New

Motor Type:AC Motor

Power(W):7.5kw

Capacity(t/h):50-100

Place of Origin:Henan, China (Mainland)

Brand Name:Hongxing brand

Model Number:XS2900 sand washer

Dimension(L*W*H):3820*2640*3200mm

Weight:8.1 t

Certification:ISO9001,CE

Warranty:12 Months

After-sales Service Provided:Engineers available to service machinery overseas

Application:Sand-making, sand-washing

Material:Iron, cast iron, cast steel,steel

Installation:Under our engineer guide

Unit component:Gear,chute,sieve etc

Spare parts:Supply for whole using life

Layout of installation:Provided freely

Structure:Durable sand washer

Maintenance:Technical support

Water consumption:Cyclic utilization

Custom-built:OEM sand washer

Packaging & Delivery

Packaging Detail:Standard containers, bare main machine, motors and small parts are packed in wooden cases.

Delivery Detail:Within 10 days after placing the order

Specifications

Sea sand washer in sand-making

1. Little sand loss

2. High efficiency:50-100t/h

3. Washing and sieving

4. ISO9001/CE

Sand washing machine or sand washing plant is widely used in particle aggregate sand screw washing, grading and dehydrating quartz and sand in construction site, sand stone factories, hydropower station and concrete dam site, precast concrete factory, glass factory and etc, so that sometimes it can also be called mineral sand washer. During the sand making process, the bucket sand washer has wide application due the strong market demands of artificial sand in the construction industry.

Features of Sand Washing Equipment:

Simple structure, less loss of medium and fine sand, almost no wearing part except the screen mesh and long service life. This sand washing equipment has more obvious advantages compared with screw sand washing equipment/washer.

Operating Principle of Artificial Sand Washer:

The electric motor runs slowly with the impeller after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impeller, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder.

Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impeller to finish the washing task.

A professional Sand Washer Supplier in Henan-Hongxing Machinery

As the professional sand washer supplier, Henan Hongxing Mining Machinery Co., Ltd will supply you with best China sand washer with the most competitive price. If you are interested in China sand washers, please contact us.
