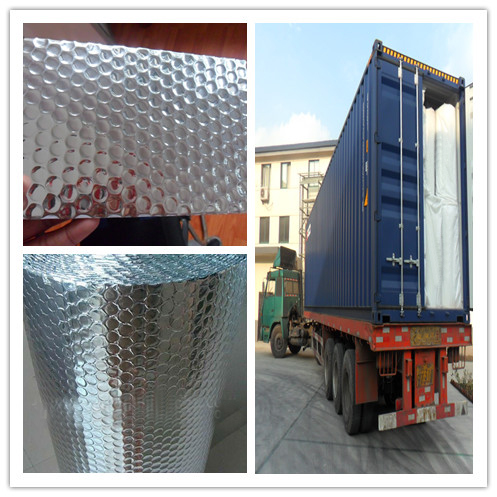

bubble foil heat insulation - JY-001

This new heat insulation material not only overcomes the discomfort and environmental damage brought by glass fiber and epispastic materials, but can also resist ultraviolet radiation that can penetrate through sheet iron, concrete, wood and other common heat insulation materials.

Structure:aluminum foil/bubble/aluminum foil
Main size:1.2m*40m
Usage:wall,roof,floor,etc
fireproof

Features:
1.Cost-effective;
2.Glossy, with good visual effect;
3.Cuts and installs easier than fiber glass;
4.Keep warm in winter, hold cool in summer;
5.No odor and toxicity, environmentally- friendly,energy-saving.

Characteristics:
1.Resist 96-97% ultraviolet radiation;
2.Strong but clean, lightweight and flexible;
3.Easily stapled, nailed or glued into place;
4.Safe to handle, with no special clothing or breath equipment;
5.Heat reflection, heat insulation, sound insulation, anti-radiation, waterproof.

Applications:
1.Residential construction in attics, walls, ceilings, and radiant floor heating applications;
2.Industrial or commercial building;
3.Agricultural building;
4.Warehouses.

Technical parameters:

PROPERTIES Test Data
Thinkness 3.5MM
Weight 256G/M2
Emissivity 0.03-0.04COEF.
Thermal conductivity 0.034W/MO
Apparent Density 85KG/M3
Reflectivity 96-97%
Water Vapour Transmission 0.013G/M2KPA
Corrosion Doesn't generate
Tensile strenght(MD) 16.98Mpa
Tensile strenght(TD) 16.5Mpa

Other product types:
1. AL/bubble/(AL);
2. AL/bubble +bubble/AL;
3. AL/ bubble/white PE anti flaming sheet;
4. AL/ white anti flaming bubble/AL with blue color;
5. AL/ white anti flaming bubble/ woven cloth/ AL;
6. AL/EPE/(AL);
7. AL/XPE/AL;
8. AL/non-woven cloth/(AL);
9. VMPET/EPE/(VMPET) etc.

We offer Aluminum foil bubble insualtion series,EPE heat insualtion series,XPE heat insulation series, Woven cloth heat insulation series,Non-woven cloth heat inslation series etc.
