cable pusher,Cable Laying EquipmentDescription

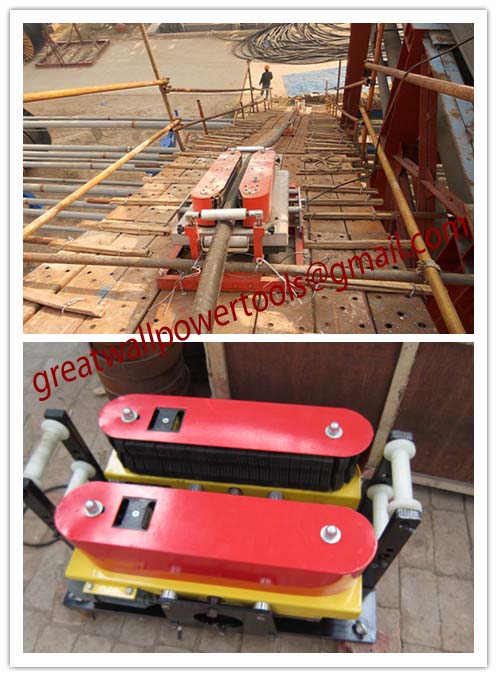

The cable pusher version has been designed to allow cable to be lifted in from one side. Cable Laying Equipment design has the advantage of being more compact when used in restricted areas such as a trench. Cable laying machines is easier to lift heavy cable into the side of the pusher than cable pusher is to lift it over the pusher and into the top. cable pusher,Cable Laying EquipmentThe hydraulic power Cable Laying Equipment unit includes the control laying and is positioned remotely, generally on the embankment above the trench.
Specification cable pusher
HYDRAULIC POWERPACK
Diesel Engine Kubota D902 - 15 kW @ 3600 rpm
Fuel Tank Capacity 40 L
Engine Oil Shell Rimula
Hydraulic Oil Castrol Hyspin AWH 46
Hydraulic Fluid Reservoir Capacity 90 Litres
Run time/tank 8 -9 hrs dependant on workload
Hydraulic Load Sense Piston Pump 25 L/min
Maximum System Pressure 240 bar (3500 psi)
Hydraulic Power unit Mass 482 kg
CABLE PUSHER
Frame Footprint Fits into 730 mm trenchRefer to attached drawing
Cable Pusher Unit Overall Dimensions (LxWxH) 1350 mm x 900 mm x 534 mm
Push or Pull Machine is capable of pushing, pulling or pushing and pulling. cable pusher,Cable Laying Equipment
Clamping pressure User adjustable. Clamping pressure and pull/push force displayed on gauges.
Maximum Cable Push Force (at reduced line speed) 20kN (2000kg)
Maximum Line Speed (at reduced push force) 25 m/min
Line cable speed and distance display On pendant
Capstan Pull Capstan enables polypropylene rope to be winched
Maximum Capstan Winch Line Pull Force 16 kN (1600 kg)
Maximum Capstan Winch Line Pull Speed 23 m/min
Adjustable Jaws, Cable Capacity. 50 to 140 mm cables
Pusher Unit Overall Dimensions (LxWxH) 1350 mm x 900 mm x 534 mm
Cable Pusher Mass 420 kg cable pusher,Cable Laying Equipment
Cable Laying Equipment not only applied for traction power cable, communication cable and aerial wire, also for other tranction fields in the situation of cable duct, tunnel, direct-burried, long-distance transmisson. Cable laying machines has small volume light weight, strong thrust force ,easy to operate, so cable pusher can be used alone or coordinated with our company other conveying sets. cable pusher,Cable Laying Equipment
