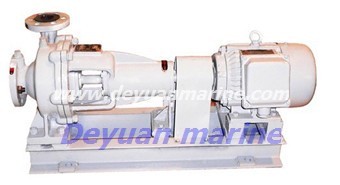

horizontal centrifugal pump
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.
CWL series marine horizontal centrifugal pump are applicable to fire control,cooling and sanitation and applied to industries,to city water supply and drain,and also to agricultural and orchard irrigation.
The pump rotates anticlockwise viewed from motor.
Type (50HZ,3phase,380v) main technical parameter Power (kw)
Capacity
(m3/h) Head
(m) Speed
R/min NPSHR
(m) Shaft power(kw)
32 CWL-4 2 20.2 2900 4.2 1.1
4 21 4.1 0.74
4.8 20.9 4.1
32CWL-3 2 31 2900 3.0 1.5
4 30 2.5 0.99
4.8 29.2 2.8
40CWL-5 4 22.2 2900 4.4 1.1
8 21 3.0 0.85
9.6 20 3.1
40CWL-4 4 32.3 2900 3.6 2.2
8 30 2.6 1.31
9.6 28.5 2.5
40CWL-3 4 43 2900 3.0 3
8 42 2.5 2.13
9.6 41 2.9
50CWL-6 6 22.2 2900 2.8 1.5
12 21 2.0 1.16
14.4 19.8 3.0
50CWL-4.5 6.0 31.5 2900 6.0 3
12 30 3.6 1.78
14.4 28.0 3.3
50CWL-4 6 43.7 2900 2.8 4
12 42 3.4 2.75
14.4 40.4 4.1

50CWL-8 16.5 22.8 2900 2.2 3
21 21 2.2 1.91
25.2 19 2.6
50CWL-7 10.5 33.6 2900 2.2 4
21 30 2.4 2.72
25.2 27 2.9
50CWL-5 10.5 45.5 2900 5 5.5
21 42 2.8 4.07
25.2 39.5 3.1
50CWL-3.5 10.5 64 2900 1.8 7.5
21 60 2.3 6.24
25.2 57 2.9
65CWL-11 17.5 23.7 2900 3.5 4
35 21 3.8 2.78
42 19.4 4
65CWL-8 17.5 33 2900 2.2 5.5
35 30 2.4 4.08
42 28 2.7
65CWL-6 17.5 45.2 2900 2.8 7.5
35 42 2.5 5.98
42 38.2 2.8
65CWL-5 17.5 64 2950 2.8 11
35 60 2.5 9.08
42 57 2.8
80CWL-14 30 23 2900 3.7 5.5
60 21 3.7 4.4
72 19.7 3.8
80CWL-14A 28 20.4 2900 3.7 5.5
56 18.5 3.7 3.71
67.2 17.5 3.8
80CWL-11 30 34.5 2900 2.2 7.5
60 30 2.9 6.54
72 27.2 3.6
80CWL-11A 28.5 31 2900 2.2 7.5
57 27 2.9 5.74
68.4 24.5 3.6
80CWL-8 30 45 2950 3.7 11
60 42 3.2 9.4
72 38.8 3.1
80CWL-8A 28 40 2950 3.7 11
56 37.6 3.2 8.07
68.2 34.5 3.1
80CWL-6 30 67.7 2950 2.8 18.5
60 60 2.3 14.21
72 54.4 2.7
80CWL-5.5 30 77.3 2950 2.6 22
60 75 2.6 17.26
72 73 2.8
80CWL-5.5A 28.4 69.4 2950 2.6 18.5
56.8 67.3 2.6 14.8
68 65.5 2.8
100CWL-18 50 24.4 2950 3.6 11
100 21 4.3 7.33
120 17.8 4.9
100CWL-18A 48.2 22.7 2900 3.6 7.5
96.4 19.5 4.3 6.82
115.6 16.5 4.9
100CWL-14 50 33.7 2950 2.5 15
100 30 3.3 10.47
120 27.5 3.8
