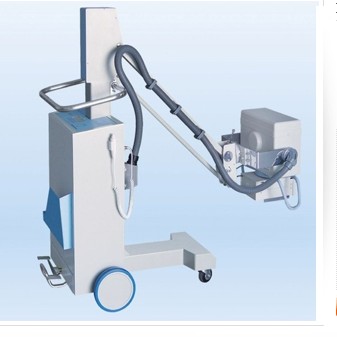

medical x ray machine (PLX101C) - PLX101C

Usage of 5.0 kw x rays machines (PLX101C)

5.0 kw x rays machines (PLX101C) is combined with typed high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc. It is mobile diagnostic equipment which can make radiography on human body, such as head, limbs, chest and spines.



Technical Parameters of 5.0 kw x rays machines (PLX101C)



Item Contents
Power Output 5.0 KW
Frequency 40KHz
Tube Voltage 40~120kV
Power Supply 220V±10%, 50Hz
Operation Method Wire/Wireless Method











Features of 5.0 kw x rays machines (PLX101C)

1. The kV closed-loop control is adopted for high frequency and high voltage generator. The digital closed-loop control technology by mAs and real-time control by the microprocessor have guaranteed accuracy and repetition of dosage.

2. Two-button adjustment by kV and mAs, display by LCD and memory by parameters after power failure.

3. The users can depend on themselves to modify the parameters of the 50 preset parameters human body anatomy program.

4.The x ray machine is featured with protection for shortage of high voltage, over-flowing of tube current and output over-loading as well as indication for failure.








warrnty : 1 year

Dimension: 120cm ×62cm×130cm
