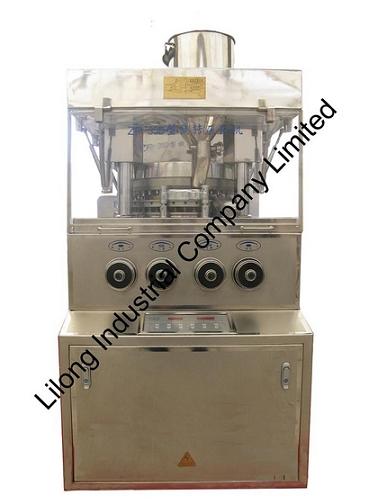

rotary tablet press ZP-35D - ZP-35D

Rotary tablet press ZP-35D is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece ,be carved characters ,special shapes and double color piece prescription .It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry ,foods, electronics .(Note: when manufacturing double color piece ,it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raises profit .)

Feature:

1.The cover is made of stainless steel with close type . The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.

2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.

3. All monitors and operating components are in good order.

4. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.

Model ZP29D
Dies 29 sets
Max Pressure 100 KN
Max Diameter of Tablet 25 mm
Max Depth of Filling 19 mm
Max Thickness of Tablet 10 mm
Turret Speed 10-30 RPM
Max production capacity 104400 pc/h
Motor 5.5 KW
Overall Size 1100x1150x1680 mm
Weight 1950 kg





Model ZP35D
Dies 35 sets
Max Pressure 80 KN
Max Diameter of Tablet 13 mm
Max Depth of Filling 15 mm
Max Thickness of Tablet 6 mm
Turret Speed 16-36 RPM
Max production capacity 150000 pc/h
Motor 4 KW
Overall Size 1100x1150x1680 mm
Weight 1950 kg





Model ZP37D
Dies 37 sets
Max Pressure 80 KN
Max Diameter of Tablet 12 mm
Max Depth of Filling 15 mm
Max Thickness of Tablet 6 mm
Turret Speed 16-36 RPM
Max production capacity 168000 pc/h
Motor 4 KW
Overall Size 1100x1150x1680 mm
Weight 1950 kg
