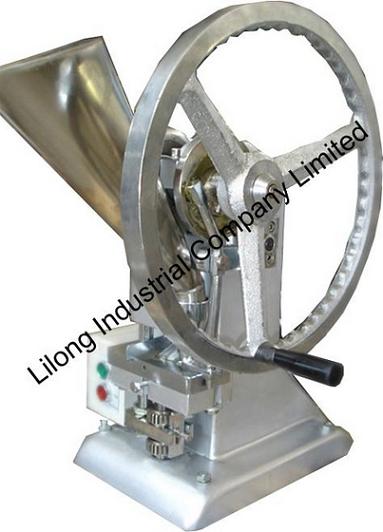

single punch tablet press - TDP-1.5

This machine is designed for pressing tablets from various granular materials, which is used for pharmaceutical, chemcial, food, hospital, scientific research institutions.

It is applicable to trial manufacturing in lab or produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape.


It features a small desh top type press for motive and continual sheeting. It can also be hand-operated easy to be operated and maintained, small volume, light weight.


One set of punch and die is mounted the depth of the filling material tablet press and thickness of the tablets can be adjusted.

Model TDP-1.5
Max pressure 15 KN
Max diameter of tablet 12 mm
Max depth of fill 12 mm
Thickness of largest tablet 6 mm
Max production capacity 5000 pc/h
Motor 550 w
Net weight 48 kg
Size 700x370x800 mm

Model TDP-5
Max pressure 50 KN
Max diameter of tablet 20 mm
Max depth of fill 16 mm
Thickness of largest tablet 6 mm
Max production capacity 4500 pc/h
Motor 750 w
Net weight 125 kg
Size 700x400x800 mm


Model TDP-6
Max pressure 60 KN
Max diameter of tablet 25 mm
Max depth of fill 16 mm
Thickness of largest tablet 6 mm
Max production capacity 5000 pc/h
Motor 1100 w
Net weight 140 kg
Size 700x500x900 mm
