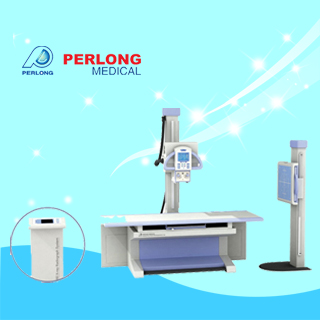

statioanry x ray system PLX160 - statioanry x ray system PLX160

PLX160 high frequency x ray machine is a radiography system,

it is a 15KW and 200mA medical x-ray system.

The brand of this x ray equipment is Perlong Medical.



Usage of High Frequency medical X-ray equipment

High Frequency medical X-ray equipment is combined with type of high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc. It is mobile diagnostic equipment which can make radiography on human body, such as head, limbs, chest and spine. The machine is especially suitable for photography without power supply, such as the special outdoor environment and emergent incidents.











Technical parameters of High Frequency medical X-ray equipment





Dual-focus Small focus :0.3mm , large focus: 0.6mm
Power output 15kw
Inveter Frequency 40kHz
Tube voltage 40~125kv
Tube current 200mA
Power supply 220V±10% , 50Hz
mAs 0.4~360mAs










Features of High Frequency medical X-ray equipment

The x ray machine is installed with close-table graphical colorful LCD touch screen and wireless remote control exposure, which makes the operator easy to handle.

1.We incorporate the latest compact high-frequency and high-voltage X-ray generator, which ensure superior image quality, while the skin dose is low, to protect the patient better.
2.Adopt the technology of kV and mAs numeral closed loop control, real-time control of the microprocessor, which ensures the accuracy and repeatability of the output dose.
3.Be equipped with radiography parameter of multi-part, multi-posture, multi-body, adult -child physical characteristic, the operator can modify and save the parameter by himself, which makes the operation more conveniently.
4.First high power combined high frequency high voltage X-ray source and high frequency inverter power supply, which can reduce energy loss from outside HV generator and cable. It makes good quality X-ray, beautiful appearance and convenience.
5.Possess multiple automatic protection and fault clue function, which makes the operation safer and more reliable.
6.The radiography table can float in any direction, electromagnetic braking, position the patient more convenience and accuracy.
7.X-ray generator component can move around the axis of X-ray generator, cross arm and Pillar stand , be convenient with side and slanting direction projection and radiography of patient on the stretcher.
8.Be equipped with the chest stand, which is used in the radiography of the head, chest, belly, pelvic cavity, backbone and periphery.
9.Control console of graphic program controlled LCD touch screen is optional, which can set the radiography parameter and exposure in another room.
