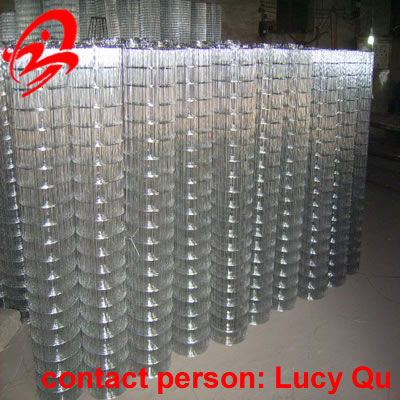

welded wire mesh - 01

welded wire mesh
wire diameter:0.4-6mm
mesh: 1",2",4",1/2",3/4",1/4",3/8", 5/8",1" x 2" ect.
0.5m~2.2m width

Welded wire mesh
We are specialized in producing all kinds welded wire mesh for 15 years, we culd offer u best quality and competitive price.
Welded wire mesh material:
Low carbon steel wire, galvanized wire and stainless steel wire
Welded wire mesh kinds :
electro galvanized welded wire mesh, hot dipped galvanized welded wire , PVC welded wire mesh
Welding characteristics:
Including galvanized before or after welding . It is divided into hot-dipped , electro galvanizing , PVC coating , plastic sprayed . It has the characteristics of corrosion-resisting and oxidation-resisting .
Welded wire mesh Using :
Industry , Agriculture , Building , Transportation , Mine , Filed , Lawn , Cultivation , Fence Guade , Decorate , Machine Protection and etc.

Opening
In inch In metric unit(mm) Wire Diameter(BWG)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
2" x 3" 50mm x 75mm 11,12,13
3" x 3" 75mm x 756mm 12,13,14,15,16
2" x 4" 50mm x 100mm 13,14,
4" x 4" 100mm x 100mm 11,12
Technical Note:1 Standard roll length: 30; Width: 0.5m-2.2m2 Special sizes available at request
