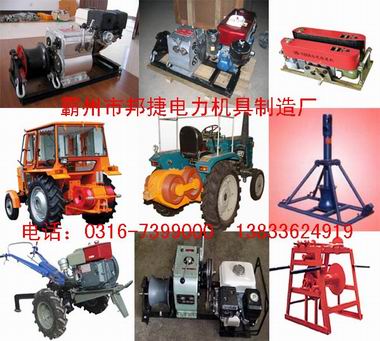

wire rope winch,cable pushers - JJMQ-2

Brand name： Bangjie
Model No.: JJMQ-2
Application: powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground. They can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting.
Operation Methods:
fore turning on the machine, you must turn on the clutch first and put the racker for crosspiece-changing the zero position.
When moving the crosspiece, you should be quick. Otherwise the brake won’t work well. When turning on the machine, you should not work to fiercly.
when changing the crosspiece position, you must turn on the clutch, Otherwise the gear will be damaged. After that, you should check whether the changing job is well done. Make sure you have not changed two crosspieces in one time.
If there is any difficulty during the precess of changing crosspiece position, you should not try to complete the job forcefully. Instead you should use the hand installment to help you complete the job. Concrete procedure: using the spanner to move the hand installment to a position with a certain angle, then you can change the crosspiece position smoothly.
