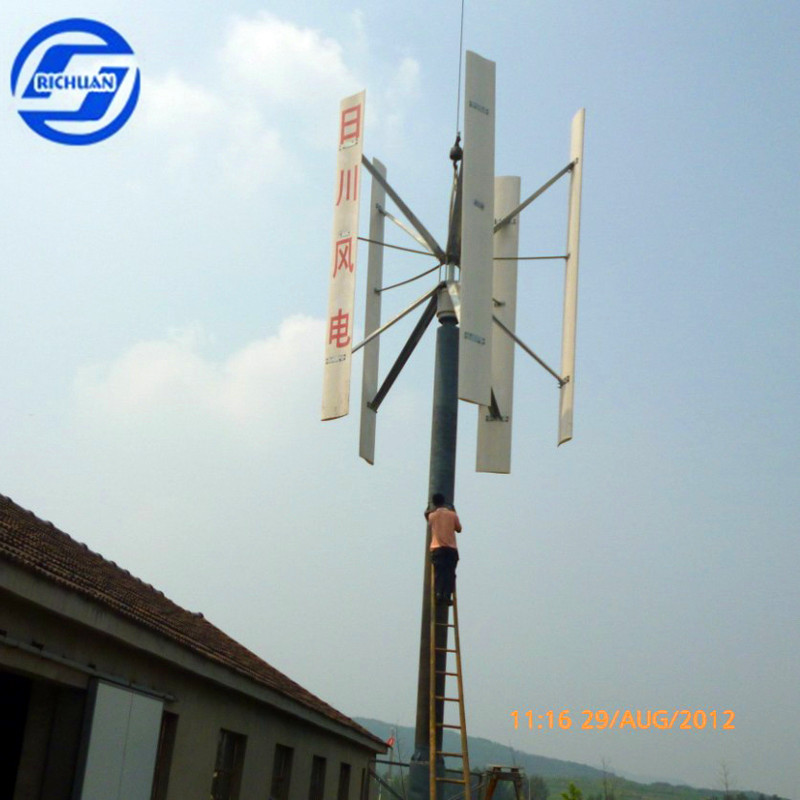

10kw wind turbine - RCVA-10KW

1.Low speed permanent magnet generator

2.Low starting torque, High generating efficiency

3.Glassfibre high efficiency blades

4.Neodymium magnets and bea ring with high performance

5.Yaw motor system

6.Designed for minimal maintenance and easy install

7.Aerodynamic brake & manul brake

8.The span life of our products is 20~25 years.

High quality and competitive price guarantee us a huge market all over the world, such as in Eastern Asia, Europe, North America ,South America and Middle East.

Technical Parameter

Rated power
10,000W

Max power
12,000W

Output voltage
216v

Rated wind speed
11m/s

Rotor diameter
3.5m

Blade material
FRP

Swept area
21m2

Cut-in wind speed
3m/s

Work wind speed
3-24m/s

Rotation speed
90r/min

Number of blades
5

Tower height
12m

Turbine weight
472kg

Tower type
Steel (Q235B)

Suggested battery type
12v200AH 18pcs


Micro-computer intelligence controller

1.If the system meet problem ,and the wind turbine is running ,it can prevent the wind turbine race rotation .

2.have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protection, battery damage protection.

Pure sine wave inverter

1. Pure sine wave output can drive any household appliances.

2. Use integrated circuit, less wire connection.

3. Adopting micro-processor technology, improving system integration.

Characteristics:

Wind turbine has small size, and simple design. It fully uses lift and drag force, easily products rated power at low wind speed. 3 Phase Permanent Magnet AC Generator, direct driven, no gearbox.

It has perfect performance. With low rpm of generator; controller can be PWM, on grid; invertors can be pure sine wave with automatic off-grid interface or directly on grid invertors.

1.Start up at a low wind speed.

2.Speed control method: Yaw+electromagnetic can control the generator speed at a rated rotating speed. Wind rotor never goes to over speed even encounter to variable wind or strong gale. Low start up wind speed 2.5m/s, 3-35m/s wind speed, wind turbine can run smoothly.

3.Permanent magnet synchronous generator, low start-up resistance moment.

4.Safety control: manual stop mechanism

5.Streamline design, sealed slip ring

6.Constant-voltage charging

7.No cable twist

Qingdao Richuan Wind Power Equipment Co., Ltd adopts advanced technology equipment and manufactures all kinds of off-grid small wind turbine generator: 300W, 500W, 1000W, 2000W, 3000W, 5000W, 10KW, 20KW and 30KW. The generator we used is high-quality permanent magnet synchronous generator and can serve for a long time. The system of Yaw+electromagnetic can control the generator speed at a rated rotating speed. The wind turbine has a stable output power and safe running. Wind rotor never goes to over speed even encounter to variable wind or strong gale.
