13.56MHz HF SD Interface RFID Reader - SD Specificaton & Trade Terms
| Model | SD |
|---|
| Place Of Origin | CHINA |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|

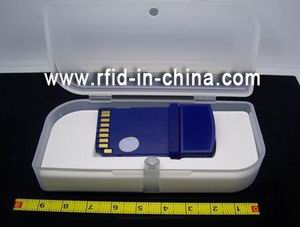

This 13.56MHz SD Interface RFID Reader is a wireless RFID reader in SD card format, designed to plug into laptop, PDA and smartphone device with a SD card slot. With the SD Interface RFID reader, professionals can use their PDA and Smartphones as portable RFID terminals.
The SD Interface RFID Reader has a very small footprint of 24*53*8mm.When pluged into the SD card slot, the outside part of the SD Interface RFID Reader is just 16mm. And its small dimensions will not affect the SD Interface RFID Reader 's application. The SD Interface RFID Reader removes existing barriers to interoperability by reading and writing ISO/IEC 14443A,ISO/IEC 14443B or ISO/IEC 15693 RFID tags on the market.
Applications include warehouse management,personnel ID,ticket management,train ticketing checking,electric power patrol and inspection,jail management,steel-jar management,food anti-counterfeiting,parcel tracking,quality controll,pharmaceutical management,etc.
The SD Interface RFID Reader is compatible with devices running Microsoft Pocket PC 2002/2003,Windows Mobile 5.0/6.0, Palm OS4.1 or LINUX operating system.To transfer RFID tag information with other device, it can use WiFi,CDMA, GSM or Bluetooth, thus giving this device rapid RFID capability.
Product Details:
1)Type: Accord with SDIO version2.0
2)Operating Frequency: 13.56MHz
3)Compliance
. IC Available at 13.56MHz nominal:
ISO 15693, ISO 14443A/B,NXP I-CODE SLI,NXP MIFARE, NXP MIFARE DESFire, TI Tag-it HF-I
4) Reading Range:
. ISO 15693: max 7cm--depending on tag antenna configuration and environment
. ISO 14443A/B: max 5.5cm--depending on tag antenna configuration and environment
5) Feature: Automatic search, read and write RFID tags
6) Physical Size: 24mm*53mm*8mm
7) Light Indication: LED indication for standby search and data communications
8) Power Comsumption: 5MA 3.3V
9) Antenna Compatibity: integrated
10) Supporting PDAs and Smartphones
. Support Microsoft Pocket PC 2002/2003,Windows Mobile 5.0/6.0
. Support Palm OS 4.1
. Support embedded LINUX
