1ton mini dumper - SD10-9D Specificaton & Trade Terms
| Model | SD10-9D |
|---|
| Place Of Origin | China |
|---|
| Brand | Topall |
|---|
| Gurantee | 1year |
|---|
| Price Term | CFR APAPA |
|---|
| Payment Term | T/T |
|---|
| Loading Ports | Nanjing/Shanghai |
|---|
Topall, expert on concrete mixers,dumpers,block machines,concrete batching plants,vibrators,lifters,rollers and loaders.
You could also call Jack Yao for price and details.

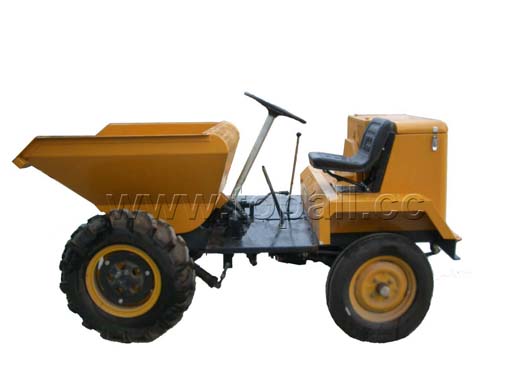

1 ton mini dumper(HS code 843050900)(tough rider)(skip loader)
Model SD10-9D(FC1)
Payload 1000Kg
Engine power Model S195NM
Type Horizontal single-cylinder four-stroke
radiator water-cooled
12 Hours rated power/Rev 8.8KW/2000rpm
Capacity of bucket 0.47m3
Drive type 4plus2
Max.speed 23Km/h
Grade ability 21%
Wheel base 1500mm
Tread Front 1320mm
Back 1290mm
3 front speeds, 1 reverse speed
Min.turning radius less than 4m
Overall size 2650plus1600plus1450mm
Weight 1000Kg
Hand crank starting engine,without driver shield,
with full engine casing,mechanic tipping hopper,ergonomic seat
(Exported to: maurituria\Western Sahara\Senegal\Gambia\Mali\Bukina Faso\Guinea\Guinea-Bissau\Cape Verde\sierra leone\Liberia\Cote d'Ivoire\Togo\Benin\Niger\Nigeria\Central Africa\Cameroon Cameroun\Equatorial Guinea\Gabon\Congo\The Democratic Republic of the Congo)
