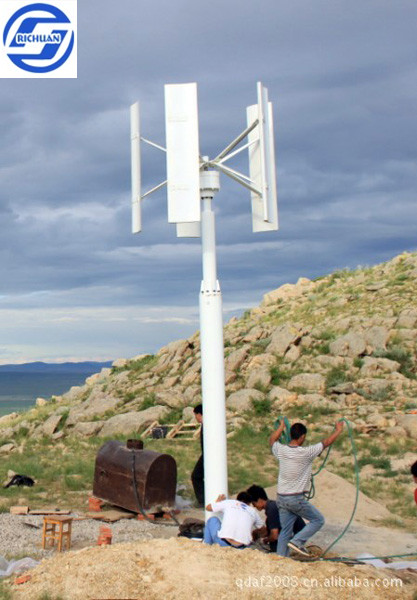

300w wind turbine - RCVA-300W

Detailed Product Description





1.Low speed permanent magnet generator

2.Low starting torque, High generating efficiency

3.Glassfibre high efficiency blades

4.Neodymium magnets and bearing with high performance

5.Yaw motor system

6.Designed for minimal maintenance and easy install

7.Aerodynamic brake & manul brake

8.The span life of our products is 20~25 years.



High quality and competitive price guarantee us a huge market all over the world, such as in Eastern Asia, Europe, North America ,South America and Middle East.

Characteristics:



1.Start up at a low wind speed.

2.Speed control method: Yaw+electromagnetic can control the generator speed at a rated rotating speed. Wind rotor never goes to over speed even encounter to variable wind or strong gale. Low start up wind speed 2.5m/s, 3-35m/s wind speed, wind turbine can run smoothly.

3.Permanent magnet synchronous generator, low start-up resistance moment.

4.Safety control: manual stop mechanism

5.Streamline design, sealed slip ring

6.Constant-voltage charging

7.No cable twist

8.No corrosion





Parameter

Rated power
300W

Max power
450W

Output voltage
220/110

Rated wind speed
8m/s

Rotor diameter
1.2m

Blade material
FRP

Swept area
3.6m2

Start-up wind speed
2m/s

Work wind speed
2-24m/s

Rotation speed
150r/min

Number of blades
5

Turbine weight
49kg

Tower height
6m

Tower type
Steel (Q235B)

Suggested battery type
12v100AH 2pcs

Service life
20-25 years






Characteristics:



1.Start up at a low wind speed.

2.Speed control method: Yaw+electromagnetic can control the generator speed at a rated rotating speed. Wind rotor never goes to over speed even encounter to variable wind or strong gale. Low start up wind speed 2.5m/s, 3-35m/s wind speed, wind turbine can run smoothly.

3.Permanent magnet synchronous generator, low start-up resistance moment.

4.Safety control: manual stop mechanism

5.Streamline design, sealed slip ring

6.Constant-voltage charging

7.No cable twist

8.No corrosion



.
