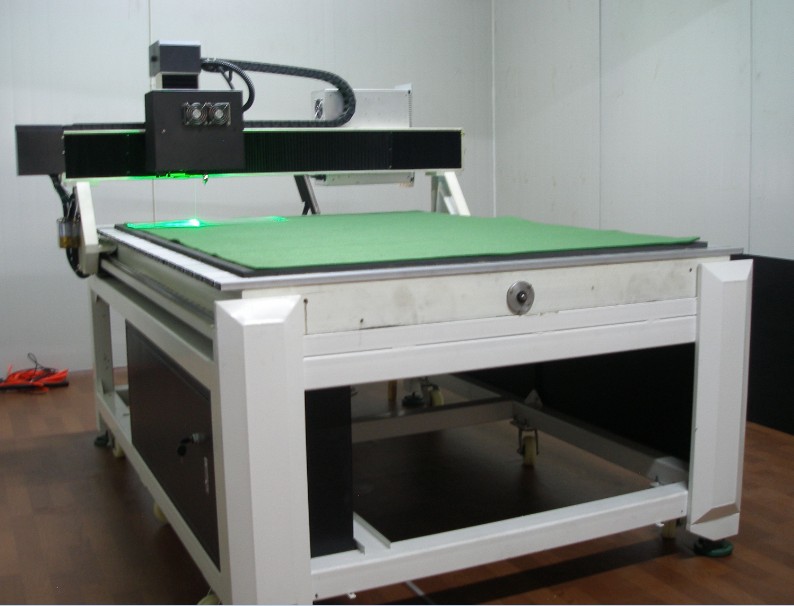

3D Laser Engraving Machine ( XLELD-GLASS-X ) - XLELD-GLASS-X Specificaton & Trade Terms
| Model | XLELD-GLASS-X |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Extremely huge size engraving. 2500hz, Diode pump, tiling technology, Max engraving size is 1350*1750*80mm,mass production. New Business Opportunities with Shining3d Laser Engraving Machine, Small cube size to large plate size, 2D and 3D Sub-surface Laser Engraving Possible.Huge size engraving for big glass or crystals Solution:
Model Number: XLELD-GLASS-X
New developed product for huge size engraving area inside glass for personalized decoration, art crafts business. Along with the tiling technology, the biggest advantage of Shiningtech XLELD-GLASS-X laser machine is the perfect combination of high engraving speed (2500dots/sec) with large engraving size to be 1350*1750*80mm, with mass production for large quantity orders.
Technical Specification:
(1) Laser Medium: Diode (DPSSL-Q Switch)
(2) Laser Wavelength: 532nm
(3) Maximum Engraving frequency: 5KHZ
(4) Laser Source: 1
(5) Resolution: 500dpi
(6) Engraving Dimension: 1350mm×1750mm×80mm (By Tiling Technology-Engraving part by part with moving working table) even larger engraving area can be customized.
(7) Max Engraving speed: 150, 000dots/min (2500dots/sec)
(8)Typical engraving time: 50*50*80mm crystal---200K points 3d portrait
