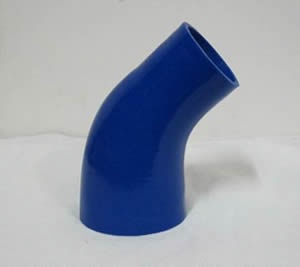

45 degree silicone reducer hose - df4

45 degree silicone reducer hose is engineered for a transition between two pipes with different sizes. Three types of silicone reducers are provided here: polyester reinforced, Nomex reinforced. Each of them has its own unique properties.
Polyester reinforced
45��reducer silicone hose with polyester reinforcement is very effective for carrying water, coolant, air. It is often used in cold sides of intercooler, turbo and intake components and piping.
Features:
Working temperature: 50�� to +170�� (-58�H to 338�H);
UV and ozone resistant;
3 to 5-ply premium polyester fabric reinforced;
Silicone hose creates a barrier to loosen medium;
Available in black, red, blue.
Remark
Reducer silicone hose reinforced by polyester is NOT compatible with fuel or oil.
Technical specification:
Part No Leg Length plies wall Internal Diameter
ER45/32-25 102x102mm (4") 3 4mm 32 to 25mm
ER45/38-32 102x102mm (4") 3 4mm 38 to 32mm
ER45/63-51 102x102mm (4") 4 5mm 63 to 51mm
ER45/76-63 102x102mm (4") 4 5mm 76 to 63mm
ER45/102-76 125x125mm (5") 5 6mm 102 to 76mm
Nomex reinforced
Nomex reinforced silicone hose is notable for its higher working temperature high pressure. Compared to polyester reinforced conducer, its operating temperature can reach +220�� (+428�H). 45 degree silicone reducer is frequently used in hot sides of turbo boost hoses and intercooler where other hoses fail.
Features:
Working temperature: -60�� to 220�� (-76�H to +428�H);
3 - 5-ply Nomex reinforced configuration;
UV and ozone resistant;
High Flame-resistant;
Silicone hose creates a barrier to loosen medium;
Only available in black.
Remark: Silicone conducer reinforced by Nomex is NOT compatible with oils & fuel.
Technical specification
Part No Leg Length plies wall Internal Diameter Color
ER45/38-32 HT 102x102mm (4") 3 4mm 38 to 32mm Black
ER45/63-51 HT 102x102mm (4") 4 5mm 63 to 51mm Black
ER45/76-63 HT 102x102mm (4") 4 5mm 76 to 63mm Black
ER45/102-76 HT 125x125mm (5") 5 6mm 102 to 76mm Black
