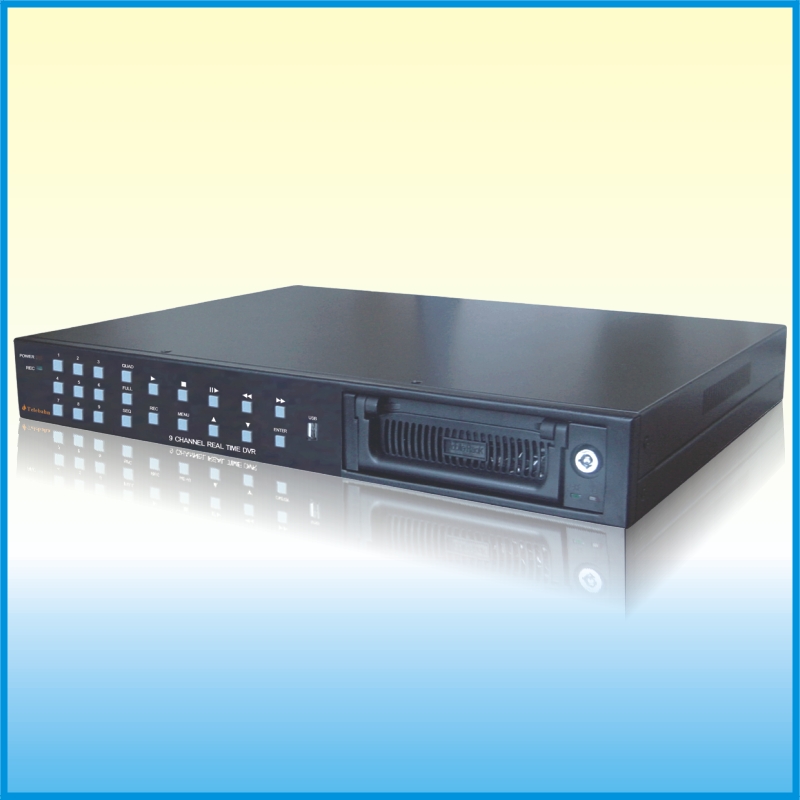

9-Channel Real Time DVR - DVR-9V1 Specificaton & Trade Terms
| Model | DVR-9V1 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Features:
* Based on real time operating system firmware
* M-FPEG compression
* 2 selectable recording mode, 4 selectable recording qualities
* Max 2 IDE HDD supported, each up to 1TB
* USB backup available
* System self-protection against power loss
* 1 channel audio recording / playback function
* Real time 100FPS / 120FPS display and 25FPS / 30FPS recording / playback
Specifications:
Model
DVR-9V1
Video Input Format
NTSC / PAL
Video Output
2 channels
Video Input
9 channels
Display Frame Rate
NTSC: 120FPS; PAL: 100FPS; Mode (sequence): Full / 4 / 9
Recording Frame Rate
NTSC: 60FPS; PAL: 50FPS
Recording Mode
Continuous / Manual / Event / Scheduled
Display Resolution
NTSC: 720*480; PAL: 720*576
Recording Resolution
NTSC: 640*224; PAL: 640*272
Enhanced Motion JPEG Compression
Low: 10KB; Normal: 15KB; High: 20KB
Hard Disk Drive
Up to 1TB
OSD
English
Back-up
HDD / USB
Search Function
Mode: Date & Time; F/Screen: Yes
Relay I/O
4 inputs, 1output
Motion Detection
Yes (Internal)
Net Weight
4150g
Dimension
4332 * 330 * 60mm
