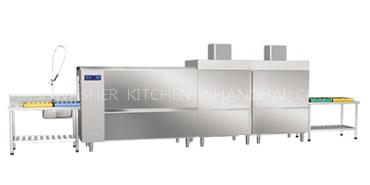

(Assembly infrared heating and drying equipment)

heating methods : electricity / steam heating Largest amount of washing:3600-4000/h for centre disinfecting 5000-8000 dishes/hour Largest washing hight : 420 mm -- The total power / steam : 56.4 kW / (2.4 kW) Main washing heating power : 24 kW Rinse heating power : 18 kW /30kw Dimension (long×width×hight) : 3500mm x 950mm x 1480 mm Dryer total power electricity/ steam : 19.9 kW kW /1.9 By connecting equipment requirements -- Total electricity / steam : 76.3 kW / (4.3 kW)/380u/50hz/3p(5-wire three-phase) Host Power Line diameter: 25 square meters dryer power line Diameter : 10 cm Inlet water pipediameter : φ 20 cm drain water pipe diameter:φ 40 cm Influent pressure (pressure flow) : 0.3-5 kg / m Inlet water temperature : 10-60 ° C Inlet water Hardness : 0.034-0.103 30g/L Inlet steam pipe diameter : φ 20 cm steam out pipe diameter :Φ 20 cm Steam Consumption : 70 kg Inlet steam pressure 0.2-0.35 kg
