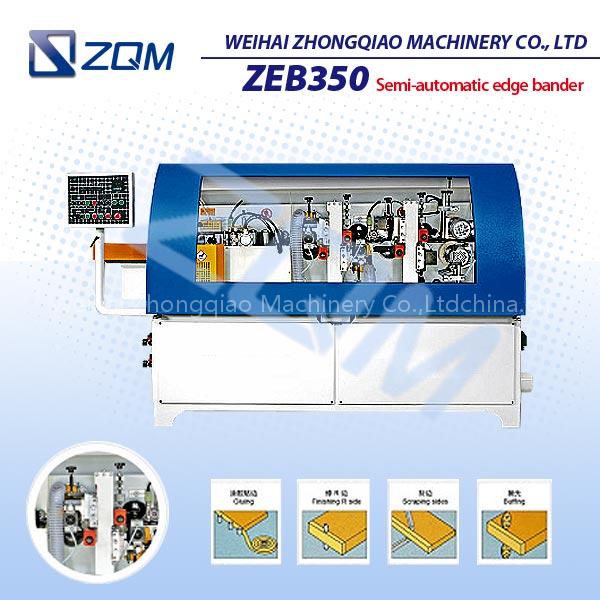

Automatic Edge Banding Machine ZEB350

ZEB350 AUTOMATIC EDGE BANDING MACHINE is an automatic multiple edge baner in woodworking industry, which can seal the roll of plastic sealing belt or solid wood strip on the edge of flakeboard, cabinet board, MDF etc by thermosol to make man-made board more beautiful and durable.

PARAMETER

MODEL ZEB350

Panel length(mm) Min. 120

Panel width(mm) Min. 80

Panel thickness(mm) 12-55

Edge width(mm) 15-58

Edge thickness(mm) 0.4-3

Feeding speed(m/min) 9.3

Total power consumption(kw) 4.84

Required air pressure(Mpa) 0.7

Net weight(kg) 860

Overall dimensions(L× W× H) 2600× 850× 1500
