This machine is used to make sawdust into is equiped with the autocontrolling heating product of this machine can be used to heat boiler, fireplace,etc for warm in house.

The raw materials for the equipment are sawdust, wood shavings, rice hull, crop straw, etc. After processing by the machine, they can turn into new energy- the machine-made charcoal. The serial of equipments have won the golden prize of the National New Technology\New Product Trade Fair for three times. They are proved to be the ideal products with little investment and instant effect.

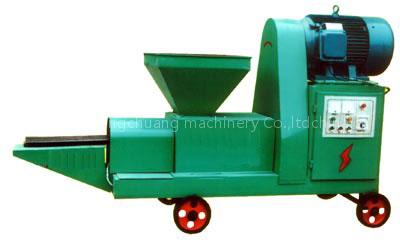

The Charcoal Machine is made up by bar fuel - forming machine and charring furnace. For the large materials, you should install a pulverizer. For raw materials with big moisture content, you need to install a drier. The equipments crush the raw materials into granules within 10mm, dry them to make the moisture content within 12%, put them into the bar fuel - forming machine and mould them by high temperature and high pressure(no additive), and then put them into the Charring Furnace carbonizing, thus the charcoal is produced.

Model No.SCIII-1

Productivitykg/day2200

Motor power (kw)11kw

Electricle Heater

Motor power(kw)3*1.5kw

Weight (kg)1000kg

Size outside1650*600*1260

Model No.SCIII-2

Productivitykg/day3200

Motor power (kw)11kw

Electricle HeaterMotor power(kw)3*1.5kw

Weight (kg)1500kg
