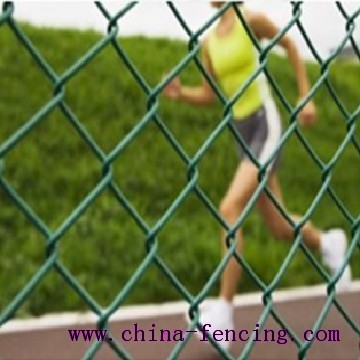

Chain Link Wire Mesh

Chain Link Fence

Chain link fence mesh is also known as diamond fence, diamond mesh, rhombic wire mesh Material: Low carbon steel wire, stainless steel wire, galvanized iron wire, PVC coated iron wire, aluminum alloy wire.

Weaving: Woven diamond pattern provides strong, durable and flexible construction. The closely spaced diamond mesh construction gives your fence linear strength and springy texture to protect horses from injury and prevent predators from entering paddocks and pastures

Specification: Opening 1" 1.5" 2" 2-1/4" 2-3/8" 2-1/2" 2-5/8" 3" 4" 25mm 40mm 50mm 57mm 60mm 64mm 67mm 75mm 100mm Wire diameter 18# - 13# 16# - 8 18#-7# 1.2 - 2.4mm 1.6mm - 4.2mm 2.0mm-5.00mm Length of the roll 0.50m - 100m(or more) Width of the roll 0.5m - 5.0m Materials and specifications can be made according to customers'detailed requirements.

Uses: Diamond mesh is used as fencing for sports field, river banks, construction and residence, also animal fencing.

Benefits: Low carbon steel diamond mesh has a heavy galvanized coating to ensure a long life. Material and Specification can produce at customer's request.
