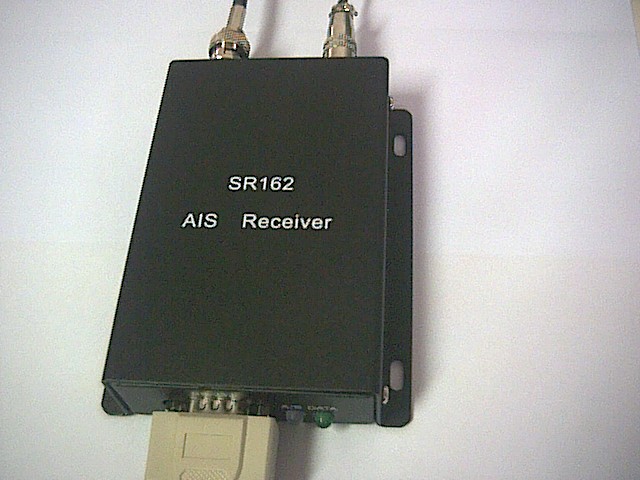

China (Mainland) Sr162 Professional Ais Receiver

Specifications: SR162 is a low cost, high performance AIS receive only unit, that enables the reception of AIS information from suitably equipped vessels at a fraction of the cost of a conventional AIS transponder but at the same receiving performance as type approved ais transponders.

The SR162 installation is quick and simple, requiring only the connection to a VHF aerial and computer(PC). With the optional viewer program you can display any AIS equipped vessel within VHF range. Information transmitted from vessels fitted with AIS Transponders include name, call sign, position, heading, speed, destination, type and size of vessel.

Alternativly a suitable chart system such as seaPro can be used to display the vessel data. The SR162 is compatible with any chart/ECDIS system capable of accepting standard NMEA 183 AIS sentences.

KEY FEATURES: *Low-cost anti-collision/monitoring system *Receives positions and other data from AIS equipped vessels within VHF range *industry standard NMEA 183/IEC61162-2 output format for compatibility *Simple connection and setup Information that can be received includes: *Name of vessel *Call sign *Type of vessel *Destination *Speed(SOG) *Course(COG) *Heading *Position *Navigational status *Rate of turn *Vessel dimensions *MMSI number Typical uses include Collision avoidance - monitor approaching AIS equipped vessels, including those hidden from radar or visual view.

Monitoring vessels - ideal for companies who have AIS equipped vessels and want to monitor them from land. When combined with software, the output from the transponder can be monitored remotely to check on a vessel progress. Data can be networked to provide broader geographic coverage.

Small port/harbour monitoring of AIS vessels where a full AIS transponder is not cost justified Extend monitoring range for larger harbours and ports where multiple systems can be linked via a network or internet.

Technical specifications Sr162 is a compact dual channel synthesised VHF receiver designed to Receive and decode transmissions from vessels fitted with Class A AIS Transceivers.

Electrical Power supply range:9 - 15 Volts DC Power consumption:600mW Output Baud rate:38400,19200,9600,4800(software select) Format: ITU/NMEA 0183 Output message: VDM Receiver Frequency: AIS1 161.975 MHz AIS2 162.025 MHz, dual channel receiving.

Channel spacing:25KHz Sensitivity: -112dBm Demodulation: GMSK Data Rate:9600 Antenna impedance:50 ohms Physical Dimensions: Length:115mm, Width:75mm, Height:28mm Weight:400g Connectors: Antenna BNC Output port:9 pin D socket Export Markets World market Pricing $575 USD for a single unit Payment Details Cash Min Order One unit Ship Date Within a week Standard Met Itu1371,61993,61162.
