Circular saw blade automatic brazing machine - CE079D pad and wire welding Specificaton & Trade Terms
| Model | CE079D pad and wire welding |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
| Minimum Order | 1 unit |
|---|
| Loading Ports | Shenzhen |
|---|

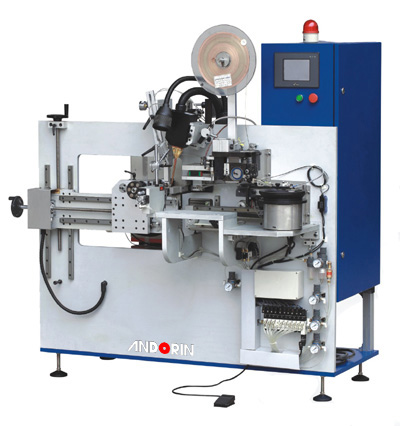

Automatic brazing /welding machine for tungsten carbide circular saw blades
Model No.: CE079D pad and wire welding
Accurate,durable welding quality
Easy to operation,clear graphical indexing table Advanced heating controller, small size, low power consumption, high efficiency
Automatic temperature control during welding
CNC control, safe and reliable
Technical parameters:
Saw blade diameter: 80MM-790MM
Hook angle: -10 degrees up to +30 degrees
Saw tip length: 3.5mm-13mm
Saw tip width: 1.5mm-6.5mm
Saw tip thickness: 1.5mm-3.0mm
Other special requirements are available
Brazing capacity: up to 18teeth/min
Welding Precision: 5 m3/min
Cooling system power: 1.5KW
Chiller flow (optional):22l/min
Dimensions(L*W*H):L 1530mm*W 1100mm*H 1640mm
Net weight: 421.70 kgs
