Climbing&Extrusion Welding Gun
Specifications
- Brand
- HUATAO
- Origin
- china
- Certifications
- ISO9001 CE
- MOQ
- 10 set
- Packaging
- straight pipe+waterproof +woven bag+one container
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C,Western Union
- Supply Ability
- 3000 sets
- Delivery Time
- within 7 days
- Loading Ports
- tianjin
Climbing&Extrusion Welding Gun is a Earthwork Products product. Key specs — Brand: HUATAO; Origin: china; Certifications: ISO9001 CE; MOQ: 10 set.
Product Description
www htgeosynthetics com
maple.zhao (at) huataogroup com
Climbing&Extrusion Welding Gun with high quality
Main products
Extrusion Welding Gun
Climbing Welding Machine

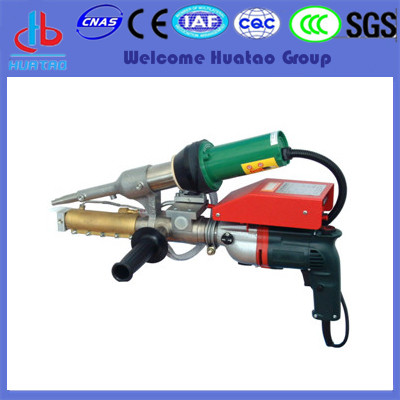

Specification Extrusion Welding Gun: Voltage: 220V
Frequency:50/60HZ
Power:Japanese Hi-tech motor:800w,hot air gun:1600w
Wind temperature: 20-600°c
Heating temperature when extruding: 200-300° c
Welding speed: 2kg/h
Diameter of welding rod: Φ3.0mm-3.5mm
Weight: 6.5kg
Climbing Welding Machine: Voltage:220V
Frequency:50/60Hz
Power:800W
Welding speed: 0.5˜5m/min
Heating temperature:0-450°C
Thickness of material: 0.1mm˜3mm
Overlap width:10cm
Welding width:12.5mm×2, interior cavity 12mm
Seam strength:≥85% base material (tensile resistant in shear direction)
Weight:5kgs
Insulation class:class II
Function
welding PE,PP,PVC,PVDF and so on.This tool is of lightweight, stable performance,convenient operation, large-amount extrusion and high efficiency, and also can welding narrow gap and corners where is not easy to reach.
Accessories:
Including control box,hot wedge,silica gel roller,steel roller.
Application
Application covers refuse landfill anti-seepage project, sewage disposal anti-seepage project, lake anti-seepage project, water conservancy anti-seepage project, tunnel anti-seepage project, minerals place anti-seepage project, cultivation pond anti-seepage project, roofing waterproofing project etc.
