Component Ypbpr to VGA converter - LKV7600 Specificaton & Trade Terms
| Model | LKV7600 |
|---|
| Place Of Origin | China Shenzhen |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|

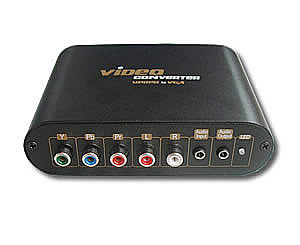

A/V Component (YPbPr) to VGA with Audio Converter Scan converter:LKV7600 allowing connection of PS2, PS3, Xbox, Xbox360, WII, Game Cube, etc. to CRT or LCD, and allowing viewing high-definition DVD and picture on PC. Plug and play, no installation driver is needed.
LKV760 YpbPr to VGA Converter Box provides you with economic, high-efficient and perfect video converter solution.
Main function:convert a Component (YPbPr) signal to VGA along with two channel audio(L/R,3.5mm)..
Other function:scale up the CRT to LCD moniter
Accessories:
User manual/Ypbpr to VGA converter/Power adapter/VGA cable/Ypbpr cable/Audio line/ear jack/
Input: 1x component video input-RCA x 3
1 x VGA input-15pin HD D-Sub(HD-15)
2 x audio input(R/L,3.5mm)
Output: 1 x VGA output-15pin HD D-Sub(HD-15)
1 x audio out(3.5mm)
Power adaptor: DC5V/1A
Optional Output Resolution:
640x480/800x600/1024x768/1440x900/1400x1050
1600*1200/1680*1050/1920*1200/1280*768
YpbPr Resolution supported:
480i/576i/480p/576p/720p/1080i/1080p(50Hz/60Hz)
Brightness, contrast, saturation, hue, etc. adjustable
Other feature: Both PC and MAC Computer are suppored
Dimension:12.8Cm(L)x9.4Cm(W)x3.4Cm(W)
