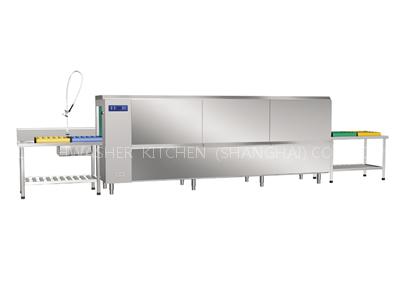

Continuous WD400 dish washing machine standards

heating methods : electricity / steam heating Largest amount of washing :8000-10000/h for centre disinfecting 12000-20000 dishes/hour Largest washing hight : 420 mm -- The total power / steam : 69.5 kW / (6.5 kW) Main washing heating power : 33 kW Rinse heating power : 18 kW /30kw Dimension (Long×width×hight) : 3000mm x 950mm x 1450 mm By connecting equipment requirements -- Total electricity / steam : 69.5 kW / (6.5 kW) /380u/50hz/3p(5-wire three-phase) Power Line diameter : 35-50 square meters Inlet water pipe diameter : φ 20 cm drain water pipe diameterφ: 40 cm Influent pressure (pressure flow) : 0.3-5 kg / m Inlet water temperature : 10-60 ° C Inlet water Hardness : 0.034-0.103 30g/L Inlet steam diameter : φ20 cm steam out pipe diameter :20 cm Steam Consumption :80 kg Inlet steam pressure :0.2-0.35 kg
