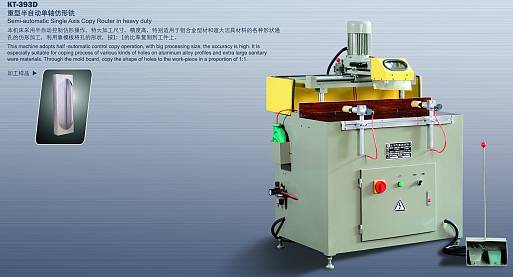

Copy Router for door&window - KT-393D Specificaton & Trade Terms
| Model | KT-393D |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
The machine adopts the half-automatic control copy operation, with extra big process size and high accuracy. It is fit for the through-hole copy machining of different size of aluminum alloy curtain wall and window profiles and cleanness appliance profiles. Utilizes the mold and copy the shape of the hole to the workpiece as per 1:1 ratio.
MAIN TECHNIQUE PARAMETER
1.Worktable size (L*W)........................980*320mm
2.Max. distance of milling head from left to right.........500mm
3.Max. distance of milling head from front to rear.........220mm
4.Max. space height of milling head...........200mm
5.Milling cutter diameter in common...........D8mm
optional...............D3~D5mm
6.Milling cutter rotation speed...............12000r/min
7.Motor power.................................N=1.1KW
8.Motor rotation speed........................2830r/min
9.Cylinder feeding travel.....................50mm
10.Working air pressure.......................0.6~0.8Mpa
11.Overall dimension (L*W*H)..................1080(2880)*950*1500mm
12.Weight.....................................500KG
