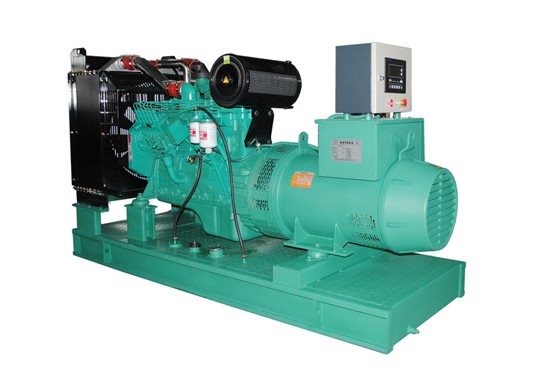

Cummins series Diesel Generators sets - JGC120GF Specificaton & Trade Terms
| Model | JGC120GF |
|---|
| Place Of Origin | Jiangsu |
|---|
| Packaging | Export standard |
|---|
| Brand | JG |
|---|
| Gurantee | One year warranty or 1000 working hours |
|---|
| Certifications | CE |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 100 Sets per month |
|---|
| Minimum Order | 1 set |
|---|
| Loading Ports | Shanghai |
|---|
| Delivery Time | 30~45 dys after receipt of deposit |
|---|
Features:
1) Engine: made in Chinese Cummins Engine factory, Branch of the Cummins Corporation in the United States.
2) Alternator:
a) Optional permanent magnet generator (PMG) excitation under all conditions.
b) Easy paralleling with mains or other generators,standard 2/3 pitch winding avoids excessive neutral current.
c) Marathon,Stamford,Faraday,Leroysomer alternator are optional.
d) Voltage and Frequency option -50HZ,1500RPM or 60HZ 1800RPM.
Product Name: Cummins B Series Generator Sets (20kVA ~ 143kVA)
Model Number: HBC18-HBC114
Place of Origin: China
Model & Specification: (50Hz, 1500rpm, 400/230V adjustable)
Features:
1) Engine and alternator shall be mounted on a same frame steel skid
2) Built-in damper for anti-vibration
3) Small size, low weight, easy to operate, installation and maintenance
4) World most famous brand diesel engine: Cummins B series engine: 4B3.9-G2, 4BT3.9-G2, 4BTA3.9-G2, 6BT5.9-G2, 6BTA5.9-G2, 6BTAA5.9-G2
5) World famous brand AC alternator: Stamford, Marathon, Leroy Somer
6) Advanced and reliable control module: Key start, Auto start, remote control
by PC with RS232 / 485
7) Full range protects function and alarm shutdown feature
8) According to professional standards
Alternator features:
1) Brush-less, 4 poles, rotation magnet
2) IP21-23 (NEMA1) enclosure is standard for all industrial alternators
3) The insulation system is class H
4) Simple installation and maintenance, with easy access to terminals,
rotating diodes and coupling bolts
5) Wide range of flange adaptors and single bearing disc coupling
6) Standard 2/3 pitch windings avoid excessive neutral currents
PMG system (optional):
1) Permanent magnet generator (PMG) system provide constant excitation under all condition
2) Optional accessories available for easy paralleling with mains or other generators
3) AVR auto voltage regulator, auto exciter, auto adjustment
Accessories:
1) Standard accessories: common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, fuel-water separator, operation manual and document
2) Optional accessories: engine coolant and oil heater, alternator space heater, cooling for heat exchanger, control system with RS232/485, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer
