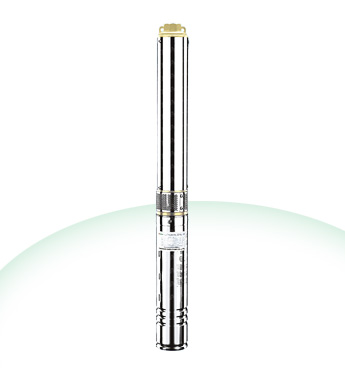

DEEP WELL PUMP - 4SDM2/5 Specificaton & Trade Terms
| Model | 4SDM2/5 |
|---|
| Place Of Origin | CHINA |
|---|
| Packaging | Exported standard carton boxes or beautiful designs according to customer's requirement |
|---|
| Brand | DABU |
|---|
| Gurantee | 1 YEAR |
|---|
| Certifications | CE |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 6000 |
|---|
| Minimum Order | 100 |
|---|
| Loading Ports | NINGBO |
|---|
| Delivery Time | 45DAYS |
|---|
Applications:
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications, for garden use and irrigation.
Operating conditions:
Water temperature up to 55℃.
Minimum internal diameter of well:102mm.
Maximum immersion depth:40m.
Motor:
(1)Full obturated screen motor
(2)Rewind able motor
Three-phase:230Vą10%(220-240V)
Three-phase:440Vą10%(380-415V)
Single-phase:230Vą10%(220-240V)
Control box with capacitor, on request.
Special features on request:
Other voltages.
Frequency 60HZ.
Other mechanical seal.
The length of cable over than 40m.
Cable gland with cable fasteners.
Warranty:1 year
(as per our general sales con ditions).
