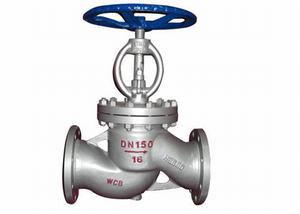

DIN CAST STEEL GLOBE VALVE - wd110

Delivery program/Technical specifications

Materials: Standard A216 WCB / C22.8 (1.0460) / GS-C25 (1.0619)
Low temperature TSTE355 (1.0566)
High temperature 16Mo3 (1.5415) / GS-22Mo4 (1.5419)
13CrMo4-5 (1.7335) / GS-17CrMo55 (1.7357)
Stainless steel 1.4306 / 1.4401 / 1.4404 / 1.4408 / 1.4462 (Duplex)
1.4539 / 1.4541 / 1.4571 / 1.4550
Face to face : DIN 3202 F1

Dimension: DN 50 - DN 800


Pressure class: PN 16 - PN 160

Connection: SW ends
BW ends
Flange connection DIN 2628, DIN 2629, DIN 2633 and DIN 2638
