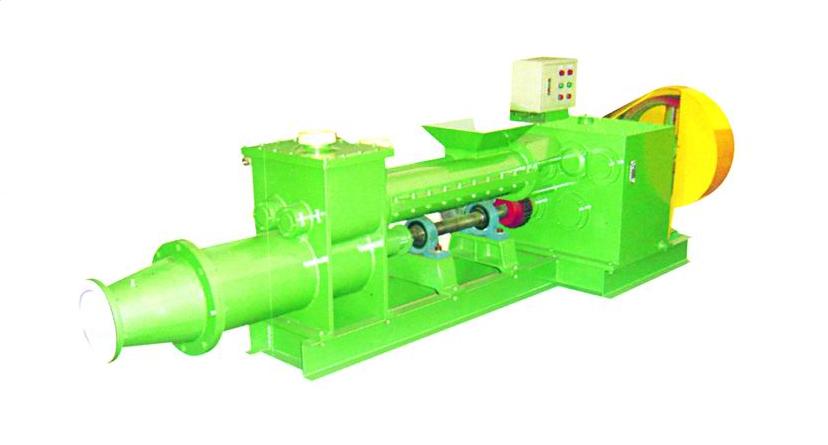

De Airing Pug Mill Ceramic Machine - T1L03250

T1L Series De-Airing Pug Mill is a treatment mud's equipment of the ceramics, use for refining pug of contain water ratio 18~24%. Its characteristics are density uniform, malleability and the end product with high quality through the machine refining out of the mud.

Main technical parameters and specifications indicators.

Type: T1L03250

Capacity: 3000~6000 kg/h

Ratate Speed: 28r/min (Upper shaft) 35r/min (Lower shaft)

Power: 7.5kw

Reference shape size: 2800*1200*1100mm

Remark: 3-axis
