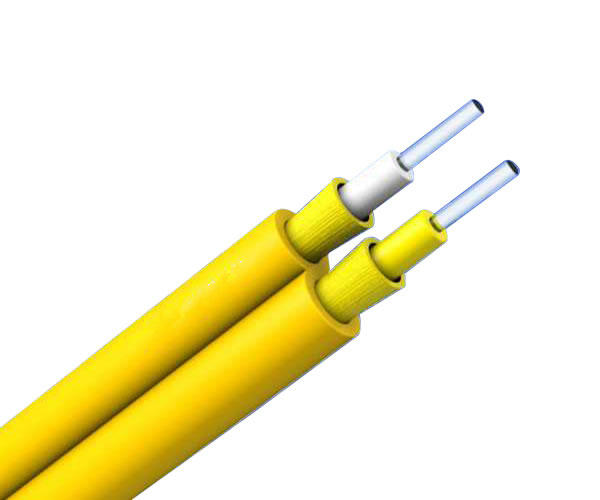

Duplex Zipcord (GJFJV) cable

Application:

1.Adopted to indoor distribution. 2.As pigtail of communication equipment. 3.Suitable for communication equipment served. 4.Can be installed conveniently and perated simply.

Characteristics: 1.Hight strength kevlar yarn member. 2.High quality tight buffered or loose tube. 3.Soft and easy to strip. 4.Round construction.

Technical Parameters: Out sheath Diameter Tight buffer Diameter Weight Minimum allowable Tensile Strength (N) minimum allowable Crush Load (N/100mm) Minimum Bending Radius (MM) Storage temperature (MM) (MM) (KG) short term long term short term long term short term long term 1.6×3.4 0.6 4.80 150 80 500 100 20D 10D -20+60 1.8×3.8 0.6 5.00 150 80 500 100 20D 10D -20+60 2.0×4.2 0.9 7.00 150 80 500 100 20D 10D -20+60 2.4×5.0 0.9 9.00 150 80 500 100 20D 10D -20+60 2.8×5.8 0.9 11.50 150 80 500 100 20D 10D -20+60 3.0×6.2 0.9 12.50 150 80 500 100 20D 10D -20+60 Optical Characteristics: Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber A1b:62.5/125 Singlemode G.652(A,B,C) B1.1:Conventional fiber G.652D B2: Zero dispersion shifted G.655 B1.2 :Cut-off wavelength shifted G.657(A1,A2 ,B3) B4: Main technical data for positive
