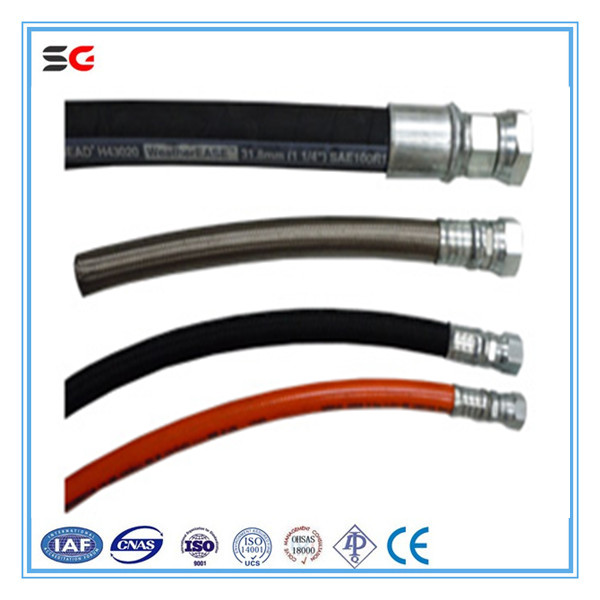

EN 853 2ST/2SN hydraulic rubber hose

EN 853 2SN/2ST Double Wire Braid Hose Part No. Size SAE I.D. W.D. O.D. W.P. B.P. Min B.R W.T.

Dash mm Inch Size Min Max Min Max 2ST 2SN bar mm Psi Bar mm kg/m B2ST-3 5 3/16 -3 4.6 5.4 10.6 11.6 15.1 16.7 14.1 6020 415 24080 1660 90 0.32 B2ST-4 6.3 1/4 -4 6.2 7 12.1 13.3 16.7 18.3 15.7 5800 400 23200 1600 100 0.36 B2ST-5 8 5/16 -5 7.7 8.5 13.7 14.9 18.3 19.9 17.3 5075 350 20300 1400 115 0.45 B2ST-6 10 3/8 -6 9.3 10.1 16.1 17.3 20.6 22.2 19.7 4785 330 19140 1320 130 0.54 B2ST-8 12.5 1/2 -8 12.3 13.5 19 20.6 23.8 25.4 23 3990 275 15960 1100 180 0.68 B2ST-10 16 5/8 -10 15.5 16.7 22.2 23.8 27 28.6 26.2 3625 250 14500 1000 200 0.80 B2ST-12 19 3/4 -12 18.6 19.8 26.2 27.8 31 32.6 30.1 3120 215 12480 860 240 0.94 B2ST-16 25 1 -16 25 26.4 34.1 35.7 38.5 40.9 38.9 2390 165 9560 660 300 1.35 B2ST-20 31.5 1-1/4 -20 31.4 33 43.3 45.7 49.2 52.4 49.5 1810 125 7240 500 420 2.15 B2ST-24 38 1-1/2 -24 37.7 39.3 49.6 52 55.6 58.8 55.9 1305 90 5220 360 500 2.65 B2ST-32 51 2 -32 50.4 52 62.3 64.7 68.2 71.4 68.6 1160 80 4640 320 630 3.42
