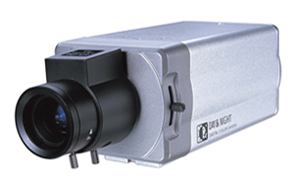

Exview CCD Camera - SC-2011 Specificaton & Trade Terms
| Model | SC-2011 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Model: SC-2011
CCD Type: 1/2″SONY Exview HAD CCD
Scanning system: PAL/NTSC
Pixels:
PAL: 752 x 582
NTSC: 768 x 494
Dynamic range: 120dB
Horizontal resolution: 540TVL (color)
Minimum illumination: 0.001 lux/F1.2
S/N ratio: more than 48dB
Video output: composite video output (1Vp-p, 75 ohms terminated)
AGC: on/off
Mirror: Horizontal Image Inversion
Montion Detection: 8 Programmable Zone
Privacy Function: 8 Programmable Zone
Sharpness Control: OFF/LOW/MID/HIGH
Gain Control: Auto/Manual
White Balance: Auto/ Manual
Backlight: Auto/Manual
Electronic Shutter: Auto/Manual
IRIS Control: DC/VIDEO
Lens: C/CS
Power supply: DC12Vą5﹪
Operation temperature: -10 to 50 degree Celsius
