Listing ID#10059458
ModelXY05-02
CategoryFurniture Bolts

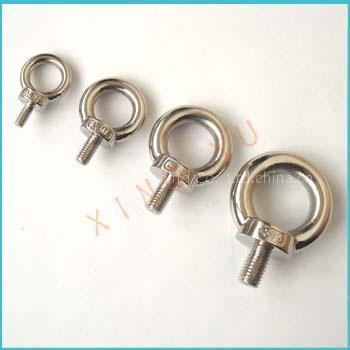

Eye Bolts DIN 580
Specifications
- Brand
- 星宇
- Origin
- China
- Price Term
- FOB
Quick answer
Eye Bolts DIN 580 is a Furniture Bolts product. Key specs — Brand: 星宇; Origin: China; Price Term: FOB.
Product Description
High Polished Stainless Steel - AISI 316/304
| ART.NO. | SIZE | A | B | C | D | E | W.L.L |
| mm | mm | mm | mm | mm | mm | Ton | |
| XY05-0201 | M6 | 16 | 28 | 25.5 | 6 | 6 | 0.07 |
| XY05-0202 | M8 | 20 | 36 | 36 | 8 | 8 | 0.14 |
| XY05-0203 | M10 | 25 | 45 | 44.5 | 10 | 10 | 0.23 |
| XY05-0204 | M12 | 30 | 54 | 53 | 12 | 12 | 0.34 |
| XY05-0205 | M14 | 35 | 63 | 61.5 | 14 | 14 | 0.52 |
| XY05-0206 | M16 | 35 | 63 | 61.5 | 16 | 14 | 0.7 |
| XY05-0207 | M20 | 40 | 72 | 71 | 20 | 16 | 1.2 |
| XY05-0208 | M22 | 45 | 81 | 80.5 | 22 | 18 | 1.5 |
| XY05-0209 | M24 | 50 | 90 | 90 | 24 | 20 | 1.8 |
| XY05-0210 | M30 | 60 | 108 | 109 | 30 | 24 | 3.6 |
| XY05-0211 | M33 | 60 | 108 | 109 | 33 | 24 | 4.3 |
| XY05-0212 | M36 | 70 | 126 | 128 | 36 | 28 | 5.1 |
| XY05-0213 | M42 | 80 | 144 | 147 | 42 | 32 | 7 |
| XY05-0214 | M45 | 80 | 144 | 147 | 45 | 32 | 8 |
| XY05-0215 | M48 | 90 | 166 | 168 | 48 | 38 | 8.6 |
| XY05-0216 | M52 | 90 | 166 | 168 | 52 | 38 | 9.9 |
