Fiber Optic Patch Panels

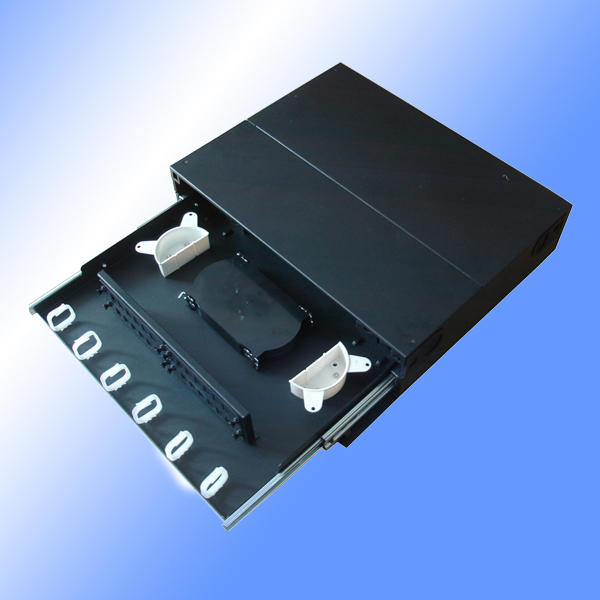

Slidable Rack-mount Fiber Optic Distribution Frame has sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

We use changeable adapter breaket to fix the adapters.Suitable for different kinds of equipment which is designed according to 19’’ cabinet.there is a drawer type pallet inside,wiring and sealing can be finished on this pallet.

Features: Standard size, and reasonable structure Slide out drawer for easy cable managementand operation.

Suitable for ribbon and single fiber Compact design for space saving Changeable adapter plate to fit different adapter interface Front mark on the plate is easy for identification and operation Front cover use Metal with transparent organic glass window in the middle for Good Visibility and observation. Top cover is removeable,easy for operation.

Painting: 1.Electrostatic Powder spraying,Black or Hoar color optional. 2.Other color according to customer’s demand. Note:If customer no special requirement,we will spray hoar color.

Material: 1.Box:cold-roll steel or Aluminum material optional. 2.Front cover:Metal with transparent organic glass window in the middle.

Ordering Information: ODF﹣R S 24 -C ① ② ③ ④ ⑤ ① Name: “ODF”: optic distribution frame ② ③Type: “R”: rack-mount type; “S”: slidable type ④ Fiber quantity: “24”: 24cores ⑤ “C” Metal with organic glass window front cover
