Listing ID#10161617
ModelMHZ1560
CategoryWood Based Panels Machinery
Quick answer

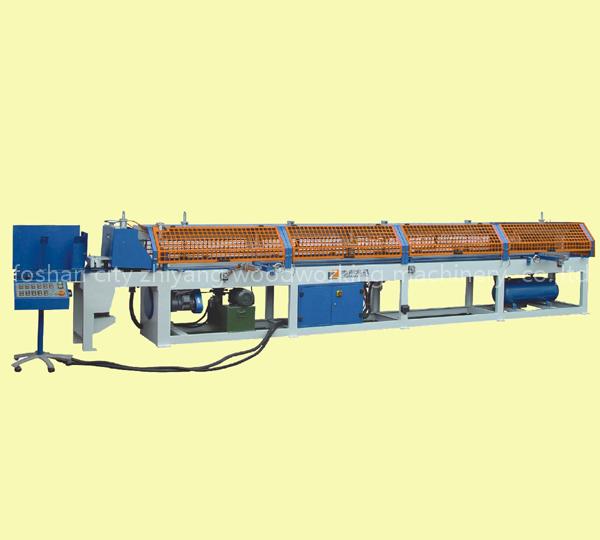

Finger joint is a Wood Based Panels Machinery product. Key specs — Origin: China (Mainland).
Product Description
| Model | MHZ1546 | MHZ1560 |
| Max.Assembly length | 4600mm | 6200mm |
| Max.Assembly width | 170mm | 170mm |
| Max.Assembly thickness | 70mm | 70mm |
| Max.Jointing force | 7800kg | 7800kg |
| Hydraulic pump power | 2.2kw | 2.2kw |
| Feeding motor power | 0.75kw | 0.75kw |
| Saw blade spindle power | 2.2kw | 2.2kw |
| Saw blade spindle speed | 3700rpm | 3700rpm |
| Feeding speed | 30-60m/min | 30-60m/min |
| Saw blade size | 355x30mm | 355x30mm |
| Working air pressure | 0.8Mpa | 0.8Mpa |
| Overall dimensions(LxWxH) | 6480x1710x1600mm | 8080x1710x1600mm |
| Net weight | 2250kg | 2600kg |
