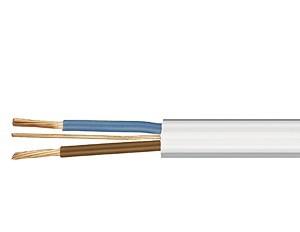

Flat cable twin with earth - Flat TPS cable Specificaton & Trade Terms
| Model | Flat TPS cable |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Specification:
1.Voltage Rate:450/750V
2.Cores:2C, 3C, 2C+E, 3C+E
3.Range of Nominal cross section:1.0 mm2 ~ 16 mm2
4.Application
These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial aaplications where not subject to mechanical damage.
5.Standard:AS/NZS 5000.2
6.Constructions
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded
Insulation: V-90 PVC
Sheath: 3V-90 PVC easy tear
Core color: red and black for active core, green/yellow for earth core, white for sheath
7.Max. Operating Temperature:90℃
8.Packing:100 meters per roll or 500 meters per roll or as per requirement
9.Production Capacity:50 kilometer/ day
10.MOQ:10000 meters for small size, 5000 meters for middle size, 1000 meters for big size
11.Delivery time:10~15 working days
Remark
The cable can be of flame retardance, fire resistance and other property
