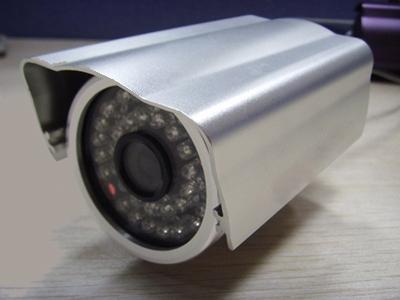

GSM camera - WH_5M0GGS

WH_5M0GGS is up to 5 megapixel resolution,it's a GSM/GPRS enabled IR camera that can be located anywhere in the world with GSM coverage to deliver full colour JPEG images from remote locations by FTP, email post to your own custom server. There exists a Central Management System to manage up to three thousand front GSM IP cameras and ten customer consoles to access on line the same time. There are three ways to trigger the camera to take picture: On demand, motion detection and schedule. It has higher stability and scalable architecture as it adopts the double-CPU system: One for Image process as well as system controlling and the other for GSM/GPRS .



Main Features
1. There exists a Central Management System to manage up to three thousand front IP cameras and ten customer consoles to access on line the
Same time.
2. Up to 5 Megapixel Image resolution.
3. Store and forward function. When the GSM/GPRS network temporary is not available, the pictures will be stored in the camera and then be forwarded to the center server when the GSM network is available.
4. GSM/GPRS Mobile Network, build in GSM/GPRS modem (SIM slot) with external antenna
5. Two-way speaking. The center server can initialize the voice speaking.
6. Several modes power supplier: Main power supply and backup battery supply. Once the failure of the main power, the backup battery will act on. Solar panel is optional
7. Multi communction ways (SMS,push Email, FTP, smart and scalable integrated PC software)
8. Various image formats (2560x1920, 2048x1536, 1600x1200, 1280x960, 640x480, 320x240 is optional)
9. Picture trigged by several ways:
A. On schedule time
B. On demand from user
C. Signal from one of the sensors and etc.
10. Up to 32 GB SD/SDHC card local storage
11. Night vision: Infrared LEDs, effective range up to 20Meters, enables the camera to capture images in dark environment.
12. Watchdog built-in assure its stability


Specification
Camera Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.6Lux @ F1.2 B / W: 0.08Lux @ F1.2
Electronic Shutter 1/25s~1/100,000s
Lens Mount CS
Media Compression Standard Picture Compression JPEG
Video Compression H.264/ MPEG-4
Audio Compression OggVorbis
Bit rate 32 Kbps~16Mbps
Image Max. Image Resolution 2560x1920
Frame Rate 7.5fps(2560x1920)
Video Parameter Saturation, Brightness, Contrast adjustable through client software or web browser
Network Protocol Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP
GSM/GPRS Network Frequency bands HSUPA /HSDPA: 2100M/1900/900/850Hz
GSM/GPRS/EDGE: 1900/1800/900/850MHz
Data rate GPRS---UL: 53.6 kbps/DL: 53.6 kbps
3G---7.2 Mbps DL / 2 Mbps UL
Interface Ethernet Interface 1 RJ45 10M / 100M self-adaptive
Intelligent Alarm Motion Detection, Network Disconnect, Storage exception
Alarm Input 1 channel
Alarm Output 1 channel
Video Output 1Vp-p Composite Output (75Ω/RCA)
Local Storage Support SD/SDHC
Basics Reset button, Anti-flicker, Heartbeat, Password Protection
General Operating Condition -10°~60° Humidity 90% or less
Power Supply DC12V±10%
Power Consumption 4W MAX
Optional PoE (Power over Ethernet)
Other powering Solar and Battery powering is optional
GPS GPS is optional
