Listing ID#97777
ModelTM-HS-SB TYPE
CategoryWires, Cables & Cable Assemblies

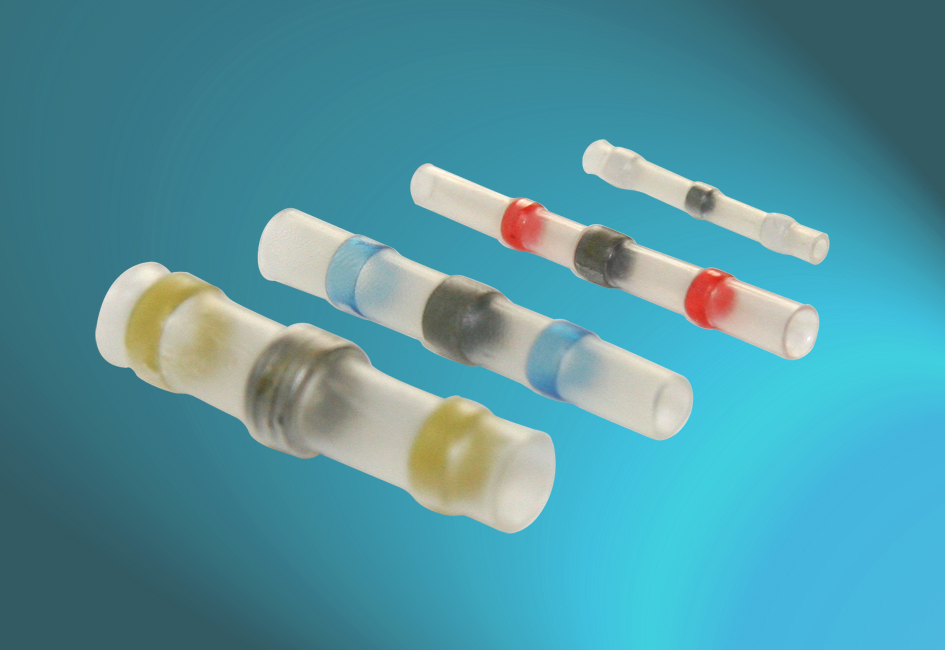

Heat-Shrink Solderable Butts
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
Quick answer
Heat-Shrink Solderable Butts is a Wires, Cables & Cable Assemblies product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
SPECIFICATIONS MATERIAL: (INSULATION) HEAT-SHRINKABLE POLYOLEFIN, (SOLDER) LEAD-FREE TIN, (RINGS) MELTABLE THERMALLY STABILIZED THERMOPLASTIC. SOLDER MELTING TEMP: 138℃, FLUX ACTIVATED ROSIN WORK TEMP: -55℃ to +125℃ SHRINKING TEMP: >200℃ DIELECTRIC STRENGTH: 2kV PROTECTION TYPE: IP 67 EASE CODE D MIN. A MIN. L MAX.
WIRE RANGE COLOR TM-HS-SB-0.5 1.7 15.2 26.0 0.1-0.5mm2 WHITE TM-HS-SB-1.5 2.7 15.2 40.0 0.5-1.5mm2 RED TM-HS-SB-2.5 4.5 15.2 40.0 1.5-2.5mm2 BLUE TM-HS-SB-6.0 6.0 15.2 40.0 2.5-6.0mm2 YELLOW
