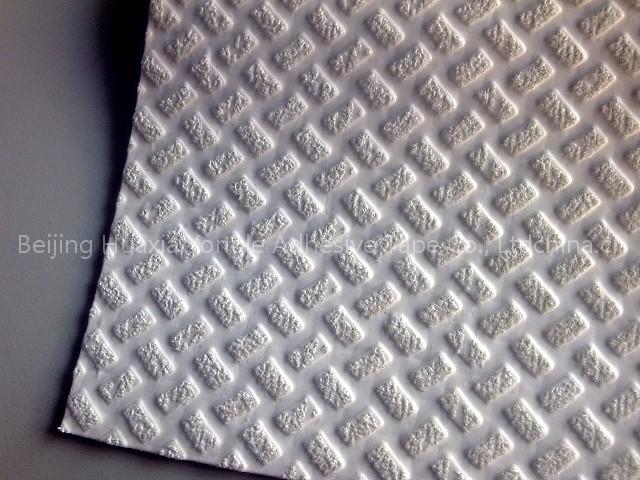

$Highly reflective Profiled Concussive Pavement Marking Tape

PLYON PL10000 profiled pavement marking tape is highly reflective under both wet and dry conditions with a raised profile. It is a conformable marking tape intended for longitudinal line applications in highway work zones. It is a warning when you drive on the line.

It is a solution to help drivers navigate work zones in all conditions.Features : Highly reflective, wet or dry; Durable for normal work zone life–installs and removes easily;Roadway may be opened to traffic immediately ReflectanceTable # 1 illustrates PLYON PL10000 pavement marking tapes excellent minimum reflective properties.

Measurements made using ASTM Test Method D4061. Table # 1Minimum Retroreflectivity Values White yellow

Entrance Angle 88.76° 88.76°

Observation Angle 1.05° 1.05°

Retroreflectivity(mcd/m2/lx) 250 175

Skid ResistanceThe surface of PL10000 provides excellent skid resistance. When tested according to the procedures specified in ASTM-E-303 it exhibits an initial minimum skid resistance value of 45 BPN.

Performance LifeThe performance life of pavement markings will depend on the following:• Traffic conditions• Snow removal practices• Pavement surfaces• Application techniquesIt is recommended that each customer thoroughly evaluate PLYON Pavement Marking Tapes under the conditions in the specified location.

While experience has shown that when properly applied, these materials are highly effective traffic control devices, PLYON Technologies makes no generalized performance claims. Standard Dimension :● Standard length : 33m , 50m● Standard width : 10cm, 15cm, 20cm, 40cm, 45cm; Or according to customer’s requirement.

Important notice:The information, data and other statements are based on our testing results, the user should determine the suitability of the product for its intended use.
