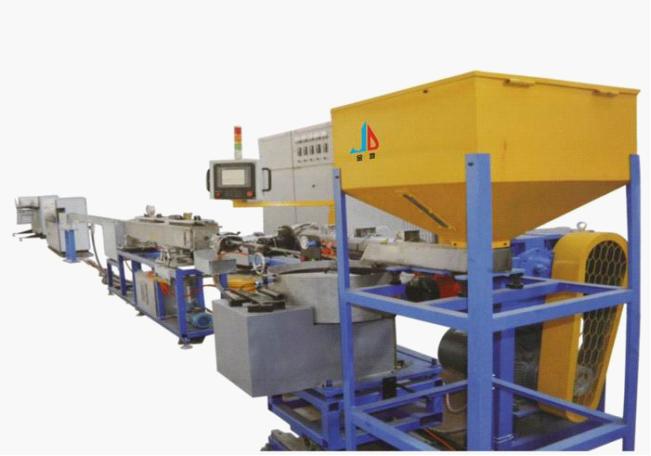

Inlaid Cylindrical drip Irrigation Pipe Machine - JDSJ-65

Application：The Machine is used to produce inlaid cylindrical type drip irrigation pipe. The pipe is widely used in water-saving irrigation fields, such as greenhouse, farmland planting and green items, etc..

Main Technical Parameters
1 Production speed 30 to 60m/min
2 Pipe diameter 6mm,12mm,16mm
3 Wall thickness 0.4mm to 1.2mm
4 Dripper distance 200mm to 2000mm
5 Extruder specification 65mm * 30/1
6 Dripper identify speed 220pcs/min
7 Traction speed 70pcs/min
8 Punching speed 70pcs/min
9 Punching method mechanical
10 Winding speed 10 to 120m/min
11 Packing 50 to 1000m/r
12 Installation power 45KW
13 Size (L *W *H) 30*2.5*2m

Component of Production Line
　1. Single-screw extruder
Model: JDSJ-65
L/D ratio: 30:1
Material of screw and barrel: 38GrMALA
Diameter of screw: 65mm
Screw rotation speed: 30-140rpm
Motor power: 22KW
Heating power of barrel: 6KW
Barrel heating way: casting aluminum heater
Surface treating: ion nitriding, polished
Maximum extruding capacit 120kg/h
Main motor control method: frequency converter
Temperature control method: PID
Machine head: right-angle machine head
Driving way: hard tooth-face speed reducer
　

　
　2. Dripper feeding, screening and sorting system
Screening method: centrifugal principle,
Screening speed: 500pcs/min
Rotating disk diameter: Φ800mm
Rotating disk material: high strength aluminum ally
Driving motor: frequency converter
Driving motor power: 0.75kw

3. Dripper transfering and inserting
Transferring way: pneumatic
Inserting way: control rod movement, drip distance can be adjust

4. Vacuum calibration tank
Vacuum bump: 1.45KW X 1 ( Siemens technique)
Water bump: 0.5KW*2 0.2KW*1
Tank material: high strength stainless steel model: 304
Tank length: standard allocation, adjustable

5. Water cooling tank
Material: high strength stainless steel model: 304
Length: 8m(4m*2)
Central height: 1000 mm

6. Traction machine
Traction way: crawler, floating traction
Lengthof tractor: 500mm
Traction speed: 70m/min
Driving motor: frequency converter
Motor power: 2.2KW
Working voltage: 0.2-0.6Mpa

7. Punching machine
Punching method: mechanical
Crumb discharging way vacuum crumb absorption
Driving power of vacuum pump: 1.45KW
Pumping speed: 70pcs/min
Motor power: 400W Delta servo




8、Winding machine
Winding method: two-position automatic winding
Rolling length: ≤2000m
Winding motor: servo
Driving power: 3kw

9. Electricity cabinet
Temperature control method: Delta temp control module, PLC control
Low voltage electrical equipment brand: Schineider
PLC, touch screen brand: Delta
Frequency converter, servo brand: Delta
