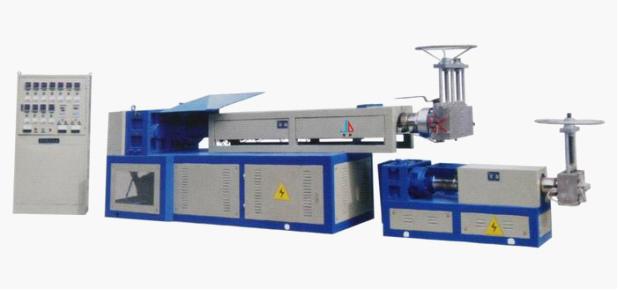

Master and Secondary Extrusion Pelletizer Line - PC,PA,ABS,PP,PE,PVC,POM Specificaton & Trade Terms
| Model | PC,PA,ABS,PP,PE,PVC,POM |
|---|
| Place Of Origin | China |
|---|
| Packaging | wooden packing |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T,L/C |
|---|
| Minimum Order | 1set |
|---|
Usage:
This production line is used for nylon and polyformaldehyde extruding and granulating making. It adopts the master and secondary structure to meet the double layer filter purpose, which can effectively remove the impurities contained in the feed back and full exhausting, more uniform plasticizing, fuller and luster in granules.
It is suit for granulation of PC,PA,ABS,PP,PE,PVC,POM etc. we can adopt the frequency conversion speed control device according to the customer's demand.
Characteristic:
Long service life, economical and practical, equable granule cutting, easy operation, stable performance.
Model Screw Dia.(mm) Long Dia. ratio Output(KG/H) Screw rotate speed(r/min) Power(kw)
SJP-80-65 80,65 20:1~15:1 70~100 73 18.5~22
SJP-90-85 90,85 20:1~15:1 80~110 73 22~30
SJP-100-90 100,90 20:1~15:1 90~120 73 30
SJP-110-100 110,90 20:1~15:1 100~130 73 30~37
SJP-120-110 120,110 20:1~15:1 110~140 73 30~45
