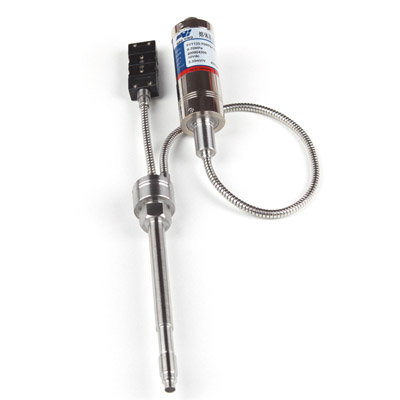

Melt pressure transducer - PT133 Specificaton & Trade Terms
| Model | PT133 |
|---|
| Place Of Origin | China |
|---|
| Packaging | box/per |
|---|
| Brand | Haoying |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T in advance |
|---|
| Supply Ability | 5pcs /5-7 working days |
|---|
| Minimum Order | 1 |
|---|
| Loading Ports | Shanghai or others |
|---|
| Delivery Time | 5-7 working days |
|---|
Features: Steel stem, flexible tube isolated, diaphragm isolated construction, interchangeable with all the global similar products.
This PT133series are suitable for the pressure measuring and controlling in the high temperature liquid medium of the chemical fiber filature, polyester, the equipment of rubber plastic machine and etc.
Specifications
Ranges: 0~30bar~2000bar
Combined accuracy: 0.25%FS ; 0.5%FS
Signal output: 2.mV/V ; 2.5mV/V ; 3.33mV/V
Excitation: 10Vdc
Thermocouple):450℃
Electric connection: 6 pin & 8pin
Process connection: 1/2-20UNF; M14×1.5 ; M18×1.5; (Optional
