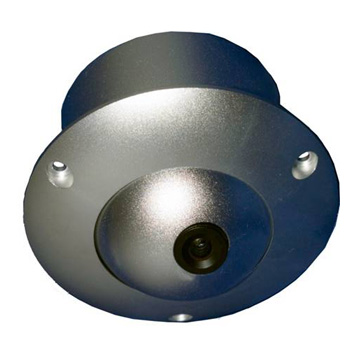

Mini Dome Camera - APG-DC200-03U Specificaton & Trade Terms
| Model | APG-DC200-03U |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Features
* High quality Sony 1/3 CCD with DSP function
* 420/480/540 TVLINE optional
* High quality image and real color with high resolution, auto gain control, auto white balance
* Metal shell, professional optical material to reduce light losing in the maximum extent
* Easy Installation, convenient adjust
*Reliable performance, stable quality, reasonable price to be widely used in bank, hotel, mall, office building, hospital, school, government.
Technical Data
Model No. APG-DC200-01U APG-DC200-02U APG-DC200-03U
CCD Type SONY1/3"Super HAD CCD
Horizontal Pixel PAL:512(H)×582(V) / NTSC:510(H)×4922(V) PAL:752(H)×582(V) / NTSC:768(H)×4924(V)
System PAL/NTSC
Horizontal Resolution 420TVLine 480TVLine 540TVLine
Minimum Illumination 0.1Lux
S/N Ratio 》48db
Video Output 1.0Vp-p/75Ω
AGC Auto
AWB Auto
Back Light Compensation Auto
Exposure Control EE (Electronic Exposure)
Electronic Shutter 1/50(1/60) to 1/100000sec.
Gamma Correction 0.45
Sync System Internal Synchronization
Lens 3.6mm (Standard)
Power Requirements DC12V±5％
Operation Temperature －20℃—50℃
Weight 0.23kg
