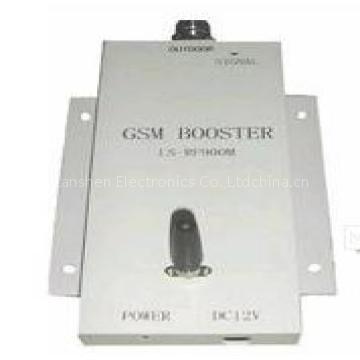

Mini GSM Repeater

Mini GSM Cell Phone Repeater Description: 1)High system gains 2)Full duplex and double-end design,external power supply, andconvenient installation 3)ALC technology with auto-steady function adopted 4)Provide power indication and uplink and downlink indications 5)With the amplified linear power, the intermodulation and spuriousness are suppressed (1)Frequency Range: Uplink 890—915MHZ Downlink 935-960MHz (2)Gain ( dB): Uplink Gp≥45 Downlink Gp≥50 (3)Export Power (Po): ≥10d Bm (4)Pass Band Ripple: ≤3dB (5)I/O Impedance: 50Ω/N connector (6)Noise Figure: ≤4dB (7)Transmission Delay: ≤0.5μs (8)Ambient Temperature: -10℃～60℃ (9)Power Supply: AC110～220V 45～55Hz (10) Size: 200 x 100 x 20 mm (11)Reliability: To the GB6993-86 standard (12)Electromagnetic Compatibility: To the ETS300 694-4 standard (13)Function:a) Power supply LED denote b) Export power LED denote (14)Coverage Area: 50 m2
